EMI Line Filters

(TCUU)

Introduction (TCUU)

EMI Line Filters for filtering common mode power line noise. In recent times there has been a growing need for energy storage inductors for noise filtering in both mains line filters and DC chokes used in switched-mode power supplies. In mains line filter applications the filtering falls into two categories: common-mode noise and differential-mode noise.

The line filter arrangement consists of two sections bobbin between the mains supply and the equipment. Note that the common-mode filter is wound on a single core and the differential mode filter consists of two indiviual wound cores. The common-mode noise is in relation to ground and is common to both lines. Differential mode noise is the noise between the two lines. Both types of noise are usually present to varying degrees.

Token EMI line filters (TCUU) series common mode choke coils are used in a wide range of prevention of radio frequency interference (RFI) and electromagnetic interference (EMI) from power supply lines and for prevention of multifunctioning of products such as measuring equipment and system equipment. Features wide range of selection, high impedance at applicable frequency, and high self-resonant frequency.

The (TCUU) series is designed to reduce stray capacity between windings by using a single-layer coil and two sections bobbin construction on high permeability ferrite core, which offer excellent high frequency characteristics. This series provides excellent noise suppression for high frequency ranges including the FM band. This filter can also be used as a signal line with excellent withstanding voltage, since the windings are divided into two sections.

Token is equipped to design and produce custom components to meet many design and reliability demands. Custom parts are available on request. Token will also produce devices outside these specifications to meet specific customer requirements, please contact our sales for more information.

Download complete specification (TCUU) PDF (499KB).

Features :

  1. Easily inserted into PCB.
  2. Small size and inexpensive type.
  3. Highly reliable, compact & lightweight.
  4. Magnetic shielded construction available.
  5. AC common mode choke coil which has excellent attenuation.
  6. Characteristics in Low Frequency Band.

Applications :

  1. Multi-Function Telephones.
  2. Common Mode Chokes for Effective AC line Noise Prevention.
  3. AC Adapters, Faxs Small Size Fluorescent Lights, VCRS,Color TVS.

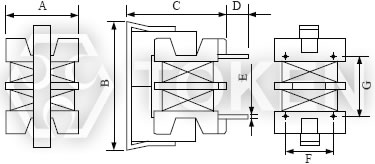

Configurations & Dimensions (Unit: mm) (TCUU98V)

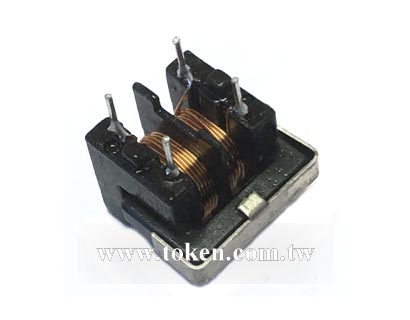

(TCUU98V) Image View
EMI Line Filters (TCUU98V) Dimensions
(TCUU98V) Configurations & Dimensions
Type A (max) B (max) C (max) D E F G
TCUU98V 11.0 16.5 16.5 3.5 Φ0.6 7.0 8.0

Note: Design as Customer's Requested Specifications.


Electrical Characteristics (TCUU98V) at 25°C

Part Number Inductance
(mH)(min)
Inductance Balance
(µH max)
DCR
(Ω)(max)
IDC
(A)(max)
TCUU98V-471 0.47 25 0.15 1.00
TCUU98V-681 0.68 25 0.25 0.85
TCUU98V-102 1.0 50 0.35 0.70
TCUU98V-222 2.2 50 0.7 0.50
TCUU98V-392 3.9 100 1.20 0.38
TCUU98V-472 4.7 100 1.60 0.34
TCUU98V-682 6.8 150 2.50 0.25
TCUU98V-103 10.0 200 4.00 0.20

Note: Test Freq.: 1.0kHz
Allowable Current : D.C. Current When Temperature of Coil Increased up to 40°C .(Ta=25°C )

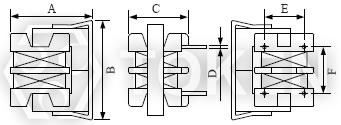

Configurations & Dimensions (Unit: mm) (TCUU98H)

EMI Line Filters - TCUU98H Series

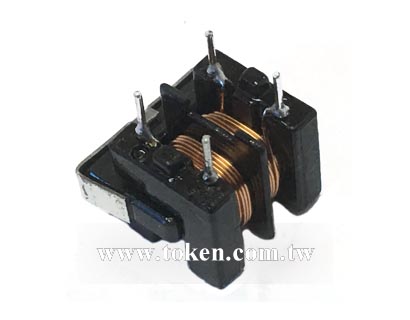

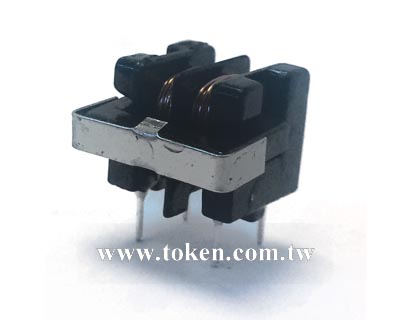

(TCUU98H) Image View
EMI Line Filters (TCUU98H) Dimensions
(TCUU98H) Configurations & Dimensions
Type A (max) B (max) C (max) D E F
TCUU98H 15.5 16.5 12.5 Φ0.6 7.0 8.0

Note: Design as Customer's Requested Specifications.


Electrical Characteristics (TCUU98H) at 25°C

Part Number Inductance
(mH)(min)
Inductance Balance
(µH)(max)
DCR
(Ω)(max)
IDC
(A)(max)
TCUU98H-471 0.47 25 0.15 1.00
TCUU98H-681 0.68 25 0.25 0.85
TCUU98H-102 1.0 50 0.35 0.70
TCUU98H-222 2.2 50 0.7 0.50
TCUU98H-392 3.9 100 1.20 0.38
TCUU98H-472 4.7 100 1.60 0.34
TCUU98H-682 6.8 150 2.50 0.25
TCUU98H-103 10.0 200 4.00 0.20

Note: Test Freq.: 1.0kHz
Allowable Current : D.C. Current When Temperature of Coil Increased up to 40°C .(Ta=25°C )

Configurations & Dimensions (Unit: mm) (TCUU10)

EMI Line Filters - TCUU10 Series
(TCUU10) Image View
EMI Line Filters (TCUU10) Dimensions
(TCUU10) Configurations & Dimensions
Type A (max) B (max) C (max) D E F G
TCUU10 17.0 18.5 23.0 4.0 Φ0.7 10.0 13.0

Note: Design as Customer's Requested Specifications.


Electrical Characteristics (TCUU10) at 25°C

Part Number Inductance
(mH)(min)
Inductance Balance
(µH)(max)
DCR
(Ω)(max)
IDC
(A)(max)
TCUU10-332 3.3 100 0.71 0.65
TCUU10-682 6.8 200 1.26 0.435
TCUU10-123 12.0 360 2.20 0.34
TCUU10-223 22.0 440 3.64 0.25
TCUU10-333 33.0 660 5.74 0.20
TCUU10-513 51.0 1000 9.12 0.15

Note: Test Freq.: 1.0kHz
Allowable Current : D.C. Current When Temperature of Coil Increased up to 40°C .(Ta=25°C )

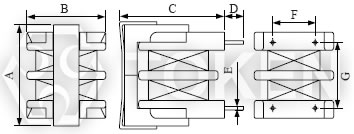

Configurations & Dimensions (Unit: mm) (TCUU16)

EMI Line Filters - TCUU16 Series
(TCUU16) Image View
EMI Line Filters (TCUU16) Dimensions
(TCUU16) Configurations & Dimensions
Type A (max) B (max) C (max) D E F G
TCUU16 22.0 20.0 28.5 4.5 Φ0.7 10.0 13.0

Note: Design as Customer's Requested Specifications.


Electrical Characteristics (TCUU16) at 25°C

Part Number Inductance
(mH)(min)
Inductance Balance
(µH)(max)
DCR
(Ω)(max)
IDC
(A)(max)
TCUU16-152 1.5 40 0.125 1.90
TCUU16-402 4.0 60 0.27 1.20
TCUU16-802 8.0 80 0.46 0.90
TCUU16-203 20.0 150 1.60 0.50
TCUU16-303 30.0 200 2.50 0.40

Note: Test Freq.: 1.0kHz
Allowable Current : D.C. Current When Temperature of Coil Increased up to 40°C .(Ta=25°C )

Configurations & Dimensions (Unit: mm) (TCUT20)

EMI Line Filters - TCUT20 Series
(TCUT20) Image View
EMI Line Filters (TCUT20) Dimensions
(TCUT20) Configurations & Dimensions
Type A (max) B(max) C(max) D E F G
TCUT20 17.2 22.0 22.5 4.5 Φ0.8 10.0 13.0

Note: Design as Customer's Requested Specifications.


Electrical Characteristics (TCUT20) at 25°C

Part Number Inductance
(mH)(min)
Inductance Balance
(µH)(max)
DCR
(Ω)(max)
IDC
(A)(max)
TCUT20-222 2.2 150 0.24 1.30
TCUT20-392 3.9 150 0.41 1.00
TCUT20-103 10.0 550 1.00 0.60
TCUT20-183 18.0 600 1.63 0.50
TCUT20-223 22.0 800 2.04 0.40
TCUT20-333 33.0 800 3.42 0.30

Note: Test Freq.: 1.0kHz
Allowable Current : D.C. Current When Temperature of Coil Increased up to 40°C .(Ta=25°C )

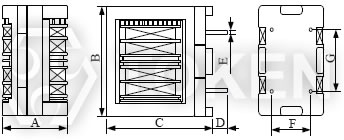

Configurations & Dimensions (Unit: mm) (TCET24B)

EMI Line Filters - TCET24B Series
(TCET24B) Image View

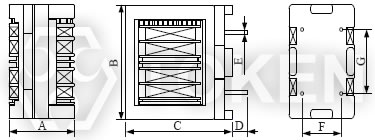

EMI Line Filters (TCET24B) Dimensions
(TCET24B) Configurations & Dimensions
Type A (max) B(max) C(max) D E F G
TCET24B 18.5 25.5 31.0 4.0 Φ0.8 10.0 13.0

Note: Design as Customer's Requested Specifications.


Electrical Characteristics (TCET24B) at 25°C

Part Number Inductance
(mH)(min)
Inductance Balance
(µH)(max)
DCR
(Ω)(max)
IDC
(A)(max)
TCET24B-252 2.5 100 0.13 2.00
TCET24B-352 3.5 150 0.18 1.70
TCET24B-452 4.5 200 0.21 1.50
TCET24B-103 10.0 300 0.47 1.00
TCET24B-153 15.0 400 0.73 0.80
TCET24B-203 20.0 600 0.87 0.70
TCET24B-353 35.0 800 1.58 0.60

Note: Test Freq.: 1.0kHz
Allowable Current : D.C. Current When Temperature of Coil Increased up to 40°C .(Ta=25°C )

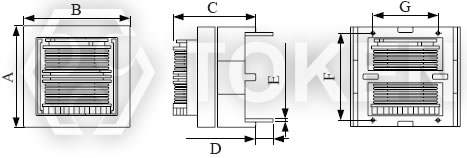

Configurations & Dimensions (Unit: mm) (TCET24H)

EMI Line Filters - TCET24H Series
(TCET24H) Image View
EMI Line Filters (TCET24H) Dimensions
(TCET24H) Configurations & Dimensions
Type A (max) B(max) C(max) D E F G
TCET24H 18.5 25.5 31.0 4.0 Φ0.8 10.0 13.0

Note: Design as Customer's Requested Specifications.


Electrical Characteristics (TCET24H) at 25°C

Part Number Inductance (mH)(min) Inductance Balance (µH)(max) DCR (Ω)(max) IDC (A)(max)
TCET24H-252 2.5 100 0.13 2.00
TCET24H-352 3.5 150 0.18 1.70
TCET24H-452 4.5 200 0.21 1.50
TCET24H-103 10.0 300 0.47 1.00
TCET24H-153 15.0 400 0.73 0.80
TCET24H-203 20.0 600 0.87 0.70
TCET24H-353 35.0 800 1.58 0.60

Note: Test Freq.: 1.0kHz
Allowable Current : D.C. Current When Temperature of Coil Increased up to 40°C .(Ta=25°C )

Configurations & Dimensions (Unit: mm) (TCET28B)

EMI Line Filters - TCET28B Series
(TCET28B) Image View
EMI Line Filters (TCET28B) Dimensions
(TCET28B) Configurations & Dimensions
Type A (max) B(max) C(max) D E F G
TCET28B 22.0 31.0 35.5 4.0 Φ0.8 10.0 13.0

Note: Design as Customer's Requested Specifications.


Electrical Characteristics (TCET28B) at 25°C

Part Number Inductance
(mH)(min)
Inductance Balance
(µH)(max)
DCR
(Ω)(max)
IDC
(A)(max)
TCET28B-182 1.8 100 0.072 2.60
TCET28B-682 6.8 200 0.23 1.60
TCET28B-123 12.0 400 0.38 1.20
TCET28B-223 22.0 500 0.65 1.00
TCET28B-393 39.0 700 1.43 0.70
TCET28B-683 68.0 850 1.82 0.60

Note: Test Freq.: 1.0kHz
Allowable Current : D.C. Current When Temperature of Coil Increased up to 40°C .(Ta=25°C )

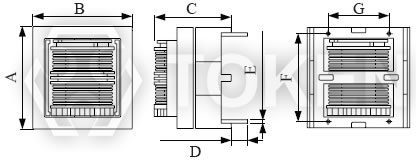

Configurations & Dimensions (Unit: mm) (TCET28H)

EMI Line Filters - TCET28H Series
(TCET28H) Image View
EMI Line Filters (TCET28H) Dimensions
(TCET28H) Configurations & Dimensions
Type A (max) B(max) C(max) D E F G
TCET28H 30.0 30.0 23.5 3.5 ± 0.5 Φ0.8 ±0.1 24.0 ± 0.5 20.0 ± 0.5

Note: Design as Customer's Requested Specifications.


Electrical Characteristics (TCET28H) at 25°C

Part Number Inductance
(mH)(min)
Inductance Balance
(µH)(max)
DCR
(Ω)(max)
IDC
(A)(max)
TCET28H-182 1.8 100 0.072 2.60
TCET28H-682 6.8 200 0.23 1.60
TCET28H-123 12.0 400 0.38 1.20
TCET28H-223 22.0 500 0.65 1.00
TCET28H-393 39.0 700 1.43 0.70
TCET28H-683 68.0 850 1.82 0.60

Note: Test Freq.: 1.0kHz
Allowable Current : D.C. Current When Temperature of Coil Increased up to 40°C .(Ta=25°C )

Order Codes (TCUU98V, TCUU98H, TCUU10, TCUU16)

TCUU98V 471   P
1234
Part Number
TCUU98V Vertical Type
TCUU98H Horizontal Type
TCUU10
TCUU16
Inductance
471 0.47mH
681 0.68mH
102 1.0mH
222 2.2mH
Winding
None Standard Winding
D Sectional Winding
Package
P Bulk

(TCUT20, TCET24B, TCET24H, TCET28B, TCET28H) Order Codes

TCUT20 222 P
123
Part Number
TCUT20
TCET24B
TCET24H
TCET28B
TCET28H
Inductance
222 2.2mH
392 3.9mH
103 10.0mH
183 20.0mH
Package
P Bulk
