SMD Power Wirewound Toroidal Inductors

(TCLP/TCVP)

Introduction (TCLP/TCVP)

Token introduces high-current & high saturation flux density compact Surface-Mount Power Wirewound Toroidal Inductors. Token Electronics Power Solutions has enhanced its toroidal surface-mount and radial lead inductor portfolios with the addition of four new ranges of RoHS compliant components. The surface mount (TCLP/TCVP) series are general-purpose radial leaded inductors suitable for providing high saturation flux density and higher current ratings applications such as those found in power supplies.

The (TCLP/TCVP) series of toroidal surface-mount power wirewound inductors meanwhile are designed for use in switching AC/DC power supplies and DC/DC converters. Both of TCLP and TCVP version secure 4 terminal mounting inductor more versatile inductance combination by series or parallel connections. Token (TCLP/TCVP) surface mount magnetics that can be used as single, or coupled inductors, or 1:1 transformers that provide isolation between two windings are designed around high frequency low loss material.

The (TCLP/TCVP) series surface-mount toroidal inductors have compact overall dimensions with a maximum overall height of less than 13 mm and 21 mm. The toroidal construction of the new inductors aids design engineers by helping minimise EMI issues.

Custom parts are available on request. Token will also produce devices outside these specifications to meet specific customer requirements, please contact our sales for more information. Download complete specification Four-Terminal Mounting Inductor (TCLP/TCVP) PDF (359KB).

Features :

  1. high saturation for surface mounting.
  2. Large Current and Low DCR.

Applications :

  1. TV BOX.
  2. Power supply applications.
  3. Output Ripple Current Filter.

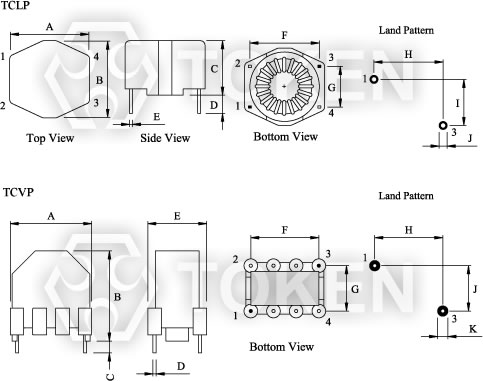

Configurations & Dimensions (Unit: mm) (TCLP/TCVP)

Higher Current Rating (TCLP/TCVP) Configurations & Dimensions
Higher Current Rating (TCLP/TCVP) Configurations & Dimensions
Type A(max) B(max) C D E F G H I J
TCLP 18.03 18.03 13.0(max) 4.0 ± 1.0 0.64 ± 0.2 15.3 ± 0.5 10.2 ± 0.5 15.3 10.2 1.78
TCVP 19.00 21.00 4.0 ± 1.0 0.7 ± 0.3 14.0(max) 15.0 ± 0.5 10.0 ± 0.5 15.0 10.0 1.78

Note: Design as Customer's Requested Specifications.

Electrical Characteristics (TCLP/TCVP)

Part Number Inductance(µH) Test Freq.(KHz) L@IDC(µH)(min) DCR (Ω)(max) IDC (A)(max)
TC*P - 60E - 151M 150 100 125 0.210 1.70
TC*P - 60E - 221M 220 100 180 0.250 1.50
TC*P - 60E - 331M 330 100 280 0.480 1.00
TC*P - 60E - 471M 470 100 400 0.660 0.90
TC*P - 60E - 681M 680 100 590 0.930 0.85
TC*P - 60E - 821M 820 100 700 1.300 0.75
TC*P - 60E - 102M 1000 100 930 1.600 0.50

Order Codes (TCLP/TCVP)

TCLP - 60E - 151 M
1 2 34
Part Number
TCLP
TCVP

Core Material

Inductance
151 150µHc
471 470.00µH
102 1000.00µH
Tolerance
M 20%
N 30%
