Chip Ambient Light Sensor, RoHS Compliant

(PT-3528)
Ambient Light Sensor - PT-3528
Ambient Light Sensor
PT-3528

Chip Ambient Light Sensor IC type for security lighting with near human Eye photopic response.

Chip ambient light sensors (ALS) will also be known as photodetector, illumination sensors, photo transistor, brightness sensors, optical sensors, or simply light sensors. The ALS signal may be used to instruct the keypad LED driver to reduce keypad backlighting minimizing as much as 30% from the power within the input standby power mode. Inside a mobile phone, the ALS enables automatic charge of display backlight brightness over an array of illumination conditions from the dark atmosphere to sunlight. This control significantly improves visibility and minimizes power consumption since LCD backlighting is able to take around 51% through the power within the input standby mode.

The (PT-IC-AC-3528-520) is a high-precision environment-friendly ambient light sensor. Optical IC with spectral response close to human eye sensitivity. A single chip on the photosensitive surface of the built-in current amplifier circuit is able to measure the visible light band. Compared with traditional visible light to near-infrared receiving silicon products, the light IC has a smaller output fluctuation. Parameters can be directly substituted for the most versatile Cds resistor, so this sensor can be used as an environmentally friendly substitute for cadmium sulfide resistor.

The (PT-IC-BC-3528-550) using high quality chip packaging and processing super-plated infrared filter membrane on chip surface, so this sensor can fully filter infrared interference. It is no need to add the casing and extra filter and effective filtering out the effect of light reflection due to infrared emission on security products. This chip IC features high precision and excellent consistency, high temperature performance, working in high temperature environment, and dark current stability.

Download complete specification Chip Ambient Light Sensor, RoHS Compliant (PT-3528) PDF.

Features :

  1. Ambient light sensors mimic the human eye with peak wavelength 520nm and 550nm, anti-infrared interference.
  2. Fast response speed and stable performance, Good batch consistency, Small static current.

Applications :

  1. No cadmium, lead free and other harmful substances, compliant with EU RoHS standards.
  2. Suitable for all kinds of infrared light control, infrared radiation, infrared reflection,
    applicable to all types of light control lighting products: such as small night Lights, lawn lights, solar lamps.
  3. Suitable for all kinds of high illumination or visible light interference strong products, automatic adjustment background light:
    such as LCD, mobile phone, camera, computer camera, installation control machine.
  4. Control all kinds of optical control video control toys and All kinds of optical control infrared testing equipment.

Custom Design :

  1. For the convenience of installation in all kinds of products in any position, different sizes are available upon request.
  2. Provide bright current / dark current (bright resistance / dark resistance) for the most suitable product.

Dimensions & Configurations (Unit: mm) (PT-3528)

SMD IR Light Sensor (PT-3528) Dimensions
SMD IR Light Sensor (PT-3528) Dimensions
 SMD IR Light Sensor (PT-3528)
PT-IC-BC-3528-550
 SMD IR Light Sensor (PT-3528)
PT-IC-AC-3528-520
Part NO. A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) I (mm)
PT-IC-BC-3528-550 3.20 ± 0.1 3.50 ± 0.1 2.10 ± 0.1 2.80 ± 0.1 1.90 ± 0.05 1.81 ± 0.05 0.80 ± 0.2 1.50 ± 0.2 0.50 ± 0.1
PT-IC-AC-3528-520 3.20 ± 0.1 3.50 ± 0.1 2.10 ± 0.1 2.80 ± 0.1 1.90 ± 0.05 1.81 ± 0.05 0.80 ± 0.2 1.50 ± 0.2 0.50 ± 0.1

Electro-Optical Characteristics (Ta=25°C) PT-IC-BC-3528-550

Parameter Symbol Condition Min. Typ. Max. Unit
Peak Wavelength λp \ - 550 - nm
Spectral Response Bandwidth λ \ 400 - 700 nm
Operating Voltage Vcc \ - 5 - V
Photo Current IL(1) Vcc=5V
Ev=10Lux
1.5 3 4.5 μA
IL(2) Vcc=5V
Ev=30Lux
4.5 9 13.5 μA
IL(3) Vcc=5V
Ev=100Lux
15 30 45 μA
Collector Dark Current Id Vcc=5V
Ev=0Lux
- - 0.1 μA
IR Receiving Current IL(4) Vcc=5V/850nm IR LED
Ee=1mW/cm2
- - 0.1 μA
Rise Time tr Vcc=5V
Ev=30Lux
RL=1000Ω
4.5 ms
Fall Time tf 4.5

Electro-Optical Characteristics (Ta=25°C) PT-IC-BC-3528-550

Parameter Symbol Rating Value Unit
Operating Voltage Vcc Min. Max. V
1 10 V
Power Dissipation Pc 70 mW
Operating Temperature Range Topr -25 ~ +85 °C
Storage Temperature Tstg -40 ~ +100 °C

Electro-Optical Characteristics (Ta=25°C) PT-IC-AC-3528-520

Parameter Symbol Condition Min. Typ. Max. Unit
Peak Wavelength λp \ - 520 - nm
Spectral Response Bandwidth λ \ 400 - - nm
Operating Voltage Vcc \ - 5 - V
Photo Current IL(1) Vcc=5V
Ev=10Lux
7 13 18 μA
IL(2) Vcc=5V
Ev=30Lux
21 39 54 μA
IL(3) Vcc=5V
Ev=100Lux
70 130 180 μA
Collector Dark Current Id Vcc=5V/85°C
Ev=0Lux
- - 0.8 μA
Rise Time tr Vcc=5V
Ev=30Lux
RL=1000Ω
4.5 ms
Fall Time tf 4.5

Electro-Optical Characteristics (Ta=25°C) PT-IC-AC-3528-520

Parameter Symbol Rating Value Unit
Operating Voltage Vcc Min. Max. V
1 10 V
Power Dissipation Pc 70 mW
Operating Temperature Range Topr -25 ~ +85 °C
Storage Temperature Tstg -40 ~ +100 °C

Relative Spectral Sensitivity vs. Wavelength PT-IC-BC-3528-550

Relative Spectral Sensitivity vs. Wavelength PT-IC-BC-3528-550

Photo Current vs. Illuminance PT-IC-BC-3528-550

Photo Current vs. Illuminance PT-IC-BC-3528-550

Dark Current vs. Ambient Temperature PT-IC-BC-3528-550

Dark Current vs. Ambient Temperature PT-IC-BC-3528-550

Photo Current Measurement Method PT-3528

Photo Current Measurement Method

Relative Spectral Sensitivity vs. Wavelength PT-IC-AC-3528-520

Relative Spectral Sensitivity vs. Wavelength PT-IC-AC-3528-520

Photo Current vs. Illuminance PT-IC-AC-3528-520

Photo Current vs. Illuminance PT-IC-AC-3528-520

Dark Current vs. Ambient Temperature PT-IC-AC-3528-520

Dark Current vs. Ambient Temperature PT-IC-AC-3528-520

Photo Current Measurement Method PT-3528

Photo Current Measurement Method

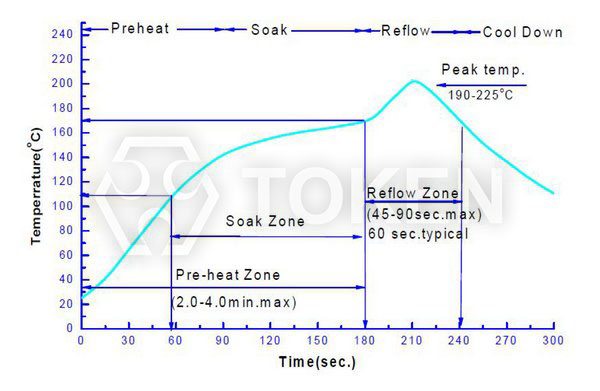

Recommended Reflow Chart (PT-3528)

Recommended Reflow Chart (PT-B1-DC-0603-940)
Characteristic of Temperature Curve Reference Settings
Average Heating Speed (Tsmax to Tp) Max. 3°C / Sec
Preheating: Minimum Temperature (Tsmin)
Preheating: Maximum Temperature (Tsmax) 150°C
Preheating: Time (tsmin to tsmax) 60 ~ 120 Sec
Reflow Temperature: Temperature (TL) 183°C
Period of Reflow: Time (TL) 60 ~ 150 Sec
Peaking Temperature (TP) 225°C
Within the Actual Peak Temperature (tp) 5°C 10 ~ 30 Sec
Cooling speed Max. 6°C / Sec
25°C Time required to rise to peak temperature Max. 6 minutes

Storage :

  1. Without opening the original wrapper, the recommended storage environment is: 5°C ~ 30°C, Humidity less 85%.
  2. After opening the original wrapper, the recommended storage environment is: 5°C ~ 30°C, Humidity less 60%.
  3. This product is humidity sensitive device. In order to avoid moisture absorption after unpackage, it is recommended that the opened packaging be stored in an airtight container with desiccant.
  4. After opening the package, the original should be used within 12 hours.
  5. If the desiccant fails or the device is exposed to air for more than 12 hours. Should be used for dehumidification treatment at 60°C / 24H.

Baking and dehumidification :

  1. Use instructions before soldering this product. After opening the original wrapper, product exposure and humid environment. Product may be damaged during soldering.
  2. Description of the storage: Products with exposure time exceeding the specified time must be baked according to the baking conditions listed below. The following downgrade table determines the maximum amount of time that this product can be exposed to the humidity and temperature conditions listed. (Unit: Day)

  3. Temperature Maximum Relative Humidity (%)
    30% 40% 50% 60% 70% 80% 90%
    30°C 9 5 4 3 1 1 1
    25°C 12 7 5 4 2 1 1
    20°C 17 9 7 6 2 2 1

  4. Baking conditions: No need to bake all the products. Baking is required only if the following criteria are met:
  5. A: Products that have been removed from the original package;
  6. B: Exposure to humid environments over time which list in Relative Humidity Table.;
  7. C: Products that have not been soldered.
  8. Reflow soldering of parts within one hours after baking, or immediately store the part in a container of relative humidity less than 20%. The product should be baked in its original reel under 60°C for 24 hours. The exposure time of the products after this baking process is again determined by the moisture sensitivity table above.

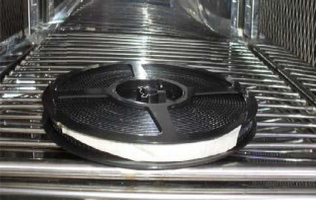

The Right way to bake
The Right way to bake
Wrong baking style
Wrong baking style

Service life :

  1. It can be used for up to 100,000 hours at rated current and rated voltage.

Use and description of Humidity Monitor card :

  1. The card with "Humiditor" in the bag is the humidity monitor card.
  2. If there is no humidity in the bag, then the color in the black circle of the monitor card is blue as shown in Figure (1).
  3. If humidity card "20%" corresponds to the black circle showing the color is pink, then bake and dehumidification the product as shown in Figure (2).
  4. Humidity card indicates packaging bag humidity conditions.
humidity card ok
Figure (1)
humidity card ng
Figure (2)

Order Codes (PT-3528)

PT - IC - BC - 3528 - 550
1 2 3 4 5
Part Number
PT

Chip Type
IC

Lens Color
BC Dark Blue
AC Water Clear

Dimensions
3528 3.5mm × 2.8mm

Peak Wavelength
550 550 nm
520 520 nm
