Ultra-Precision High-Power High-Voltage Resistors (HI80)

Ultra-Precision Power Voltage Resistors (HI80) Introduction

New ruthenium material, extended ultra-precision high-power high-voltage resistors (HI80) breakthrough 300W, precision narrowed to 0.1%

< >

Token electronic ultra-precision high-power high-voltage resistor (HI80) family series take advantage of new ultra-fine ruthenium material, 95% aluminum oxide ceramic rods, and thick film non-inductive Serpentine Pattern Design. Precision can be narrowed to ±0.1%, and power breakthrough 300W. (HI80) featuring heat-resistant, humidity-resistant, resisting electrical pulse, and stable and reliable long-term performance, is specifically designed for general purpose industrial high voltage system applications.

(HI80) family of high-voltage resistors includes conventional high-voltage resistors (HI80D), conventional miniaturized high-voltage resistors (HI80DS), high-power high-voltage resistors (HI80P), and ultra-precision high-voltage resistors (HI80T).

Conventional high voltage resistors (HI80D) have a wide resistance range of 200Ω ~ 10GΩ, rated power 2.5W ~ 20W, accuracy tolerance F (± 1%), J (± 5%), K (± 10%), the lowest temperature coefficient down to 50ppm on request, and the standard temperature coefficient of 100ppm.

(HI80DS) All-film conventional miniature high-voltage resistor relative to (hi80d), with small size, higher power 3W ~ 30W, withstand higher voltage, and none-inductance. The temperature coefficient of the lowest can reach 50ppm (25°c ~105°c), the standard temperature coefficient of 100ppm. Precision Tolerances F (±1%), J (±5%), K (±10%).

High power high voltage resistors (HI80P) have high rated power 20W ~ 300W, resistance range 1Ω ~ 1GΩ, precision tolerance D (± 0.5%), F (± 1%), J (± 5%), K (± 10% ), The temperature coefficient of up to 25ppm (on request), the standard temperature coefficient of 50ppm.

Ultra-precision high-voltage resistor (HI80T) characters 15ppm temperature coefficient, the standard temperature coefficient is 25ppm, the precision tolerance has B (± 0.1%), D (± 0.5%), F (± 1%), the resistance range 1Ω ~ 500MΩ, and the rated power 0.8W ~ 6W to choose from.

Token (HI80) Voltage Resistor series is able to absorb large amounts of energy at high voltage while remaining non-inductive and heavy load characteristics. The HI80 conforms to the RoHS directives and Lead-free. Customed design, and tighter tolerances are available on request.

For customed designs, tighter tolerances, non-standard technical requirements, or custom special applications, please contact our sales for more information.

Download complete specification Ultra-Precision High-Power High-Voltage Resistors (HI80) PDF.

Features :
  1. Thick film sensorless design.
  2. Wide range of resistance.
  3. Bottom temperature coefficient and high precision.
  4. Resistance to humidity, heat and electricity.
  5. Long term performance, stable and reliable.
Applications :
  1. Impulse voltage generators,
  2. Arc furnace damping, Energy research,
  3. Pulse modulators, Radar Pulse-forming networks,
  4. Capacitor crowbar circuits, High voltage snubber circuits,
  5. X-ray/imaging equipment, and EMI/lightning supression.

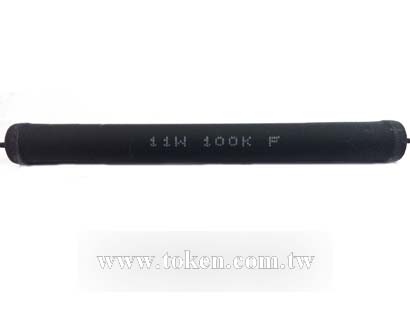

Conventional High Voltage Resistor Construction (HI80D)

High Voltage Resistor Construction (HI80D & HI80T)
Membrane Material (a) Ruthenium Paste
Base Material (b) 95% Aluminum Oxide, Al2O3
Encapsulating Material (c) High Temperature Silicone Resin

Specifications & Painted Dimensions (Unit: mm) (HI80D)

Conventional High Voltage Resistor Painted Dimensions (Unit: mm) - (HI80D)
Conventional High Voltage Resistor Painted Dimensions (Unit: mm) - (HI80D)
Part Number Rated power (W)
Ambient temperature (75°C)
Max. continuous Oper. Volt (KV) Resistance range (Ω) Dimensions (mm)
Min. Max. L ±0.5mm E ±3mm D ±0.5mm d ±0.1mm
HI80D-15 0.5 3.0 200 1G 15 30 5.0 0.8
HI80D-20 2.5 4.8 200 1G 20 28 8.0 1.0
HI80D-26 3.7 6.4 250 1G 27 28 8.0 1.0
HI80D-32 4.5 8.0 300 1.5G 33 28 8.0 1.0
HI80D-39 5.2 12.8 400 1.5G 39 28 8.0 1.0
HI80D-52 7.5 16 500 2.5G 52 28 8.0 1.0
HI80D-78 11 24 900 4G 78 28 8.0 1.0
HI80D-103 12 32 1K2 6G 103 28 8.0 1.0
HI80D-124 15 40 1K5 8G 124 28 8.0 1.0
HI80D-154 20 45 2K 10G 154 28 8.0 1.0

Conventional Miniature High Voltage Resistor Construction (HI80DS)

High-Power High Voltage Resistor Construction (HI80P)
Membrane Material (a) Ruthenium Paste
Base Material (b) 95% Aluminum Oxide, Al2O3
Encapsulating Material (c) High Temperature Silicone Resin

Conventional Miniature Specifications & Painted Dimensions (Unit: mm) (HI80DS)

Conventional Miniature Specifications & Painted Dimensions (Unit: mm) - (HI80DS)
Conventional Miniature Specifications & Painted Dimensions (Unit: mm) - (HI80DS)
Part Number Rated power (W)
Ambient temperature (75°C)
Max. continuous Oper. Volt (KV) Resistance range (Ω) Dimensions (mm)
Min. Max. L ±0.5mm E ±3mm D ±0.5mm d ±0.1mm
HI80DS-20 3 4.8 200 1G 20.2 30 8.2 1.0
HI80DS-26 5 6.4 250 1G 26.9 30 8.2 1.0
HI80DS-32 7 8.0 300 1.5G 33.0 30 8.2 1.0
HI80DS-39 9 12.8 400 1.5G 39.5 30 8.2 1.0
HI80DS-52 10 16 500 2.5G 52.1 30 8.2 1.0
HI80DS-78 15 24 900 4G 77.7 30 8.2 1.0
HI80DS-103 20 32 1K2 6G 102.9 30 8.2 1.0
HI80DS-124 25 40 1K5 8G 123.7 30 8.2 1.0
HI80DS-154 30 45 2K 10G 153.7 30 8.2 1.0

Construction (HI80T)

High-Power High Voltage Resistor Construction (HI80T)
Membrane Material (a) Ruthenium Paste
Base Material (b) 95% Aluminum Oxide, Al2O3
Encapsulating Material (c) High Temperature Silicone Resin

Ultra-Precision High Voltage Resistor Specifications (HI80T)

Ultra-Precision High Voltage Resistor Unpainted Dimensions (Unit: mm) - (HI80T)
Ultra-Precision High Voltage Resistor Unpainted Dimensions (Unit: mm) - (HI80T)
Part Number Rated power (W) Max. continuous Oper. Volt (KV) Resistance range (Ω) L ±0.5mm E ±3mm D ±0.5mm d ±0.1mm
HI80T-20 0.8 3 1 ~ 500M 20 30 8 1
HI80T-26 1.0 4 1 ~ 500M 27 30 8 1
HI80T-32 1.2 5 1 ~ 500M 33 30 8 1
HI80T-39 1.5 6 1 ~ 500M 39 30 8 1
HI80T-52 2 10 1 ~ 500M 52 30 8 1
HI80T-78 3 15 1 ~ 500M 78 30 8 1
HI80T-103 4 20 1 ~ 500M 103 30 8 1
HI80T-124 5 25 1 ~ 500M 124 30 8 1
HI80T-154 6 30 1 ~ 500M 154 30 8 1

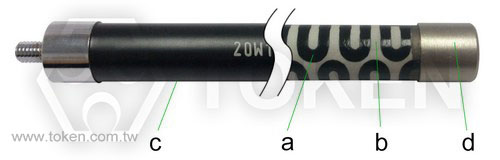

High-Power High Voltage Resistor Construction (Unit: mm) (HI80P)

High-Power High Voltage Resistor Construction (HI80P)
Membrane Material (a) Ruthenium Paste
Base Material (b) 95% Aluminum Oxide, Al2O3
Encapsulating Material (c) High Temperature Silicone Resin
Cap (d) Nickel Plating Copper

High-Power High Voltage Resistor Specifications (Unit: mm) (HI80P)

High-Power High Voltage Resistor Dimensions (Unit: mm) - (HI80P)
High-Power High Voltage Resistor Dimensions (Unit: mm) - (HI80P)
Part Number Rated power (W) Max. continuous Oper. Volt (KV) Resistance range (Ω) L ±1mm E ±1mm D ±0.5mm d ±0.01mm
HI80P-20 20 30 1 ~ 1G 116 10 17 M6
HI80P-30 30 30 1 ~ 1G 116 10 19 M6
HI80P-50 50 30 1 ~ 1G 116 10 21 M6
HI80P-80 80 30 1 ~ 1G 130 10 28 M6
HI80P-100 100 35 1 ~ 1G 160 10 28 M6
HI80P-150 150 60 1 ~ 1G 210 10 28 M6
HI80P-200 200 60 1 ~ 1G 260 10 28 M6
HI80P-300 300 80 1 ~ 1G 310 10 33 M6

Technical Characteristics - (HI80)

Part Number Resistance range (Ω) Tolerance (%) TCR @25°C (-55°C ~ +105°C) Insulation withstand voltage Insulation resistance Operating temp. range
HI80D 200 ~ 10G ±1% ~ ±10% 100ppm/°C,(±50ppm/°C on request) 1000VDC ≥ 10GΩ -55°C ~ +225°C
HI80DS 200 ~ 10G ±5% ~ ±10% 100ppm/°C,(±50ppm/°C on request)
HI80T 1 ~ 500M ±0.1% ~ ±1% ±25ppm/°C,(±15ppm/°C on request)
HI80P 1 ~ 1G ±0.5% ~ ±10% ±50ppm/°C,(±25ppm/°C on request)

Environmental Characteristics - (HI80)

Inspection item Inspection method Performance requirement
Overload 5 times the rated power, but not more than 1.5 times the maximum continuous operating voltage, 5 seconds ΔR ≤ ±(0.2%R + 0.01Ω)
Load life 1000 hours under rated power ΔR ≤ ±(0.5%R + 0.01Ω)
Steady-state damp heat 40°C, RH ≥ 95%, 240h ΔR ≤ ±(0.4%R + 0.01Ω)
Temperature shock -65°C ~ 155°C, 5 cycle ΔR ≤ ±(0.2%R + 0.01Ω)

Power Derating Curve - (HI80)

Power derating curve

Power Derating Curve - (HI80DS)

Power derating curve

Advance Technique of Non-Inductive & Serpentine Pattern (HI80)

High Voltage Resistors (HI80) Serpentine Pattern

Non-Inductive Performance:

  1. HI80 Non-Inductive Design which uses a serpentine resistive pattern that offers for zigzagging lines to carry current in opposite directions, thereby achieving maximum neutralization of flux fields over the entire length of the resistor.

  2. This efficient non-inductive construction without derating of any performance advantages is ideal for applications where high frequency is required.

Serpentine Pattern Screen Printing Design:

  1. Type High Voltage HI80 Precision Resistors combine Token's Non-Inductive serpentine pattern, high thru-put screen printed silicone coating.

  2. The alignment of the gap in the serpentine resistor pattern with the gap in the coating pattern provides a complete encapsulation of the resistor element.

  3. The cap and lead assemblies are pressed onto the resistor core, finishing the resistor and providing rugged terminal attachment.

Order Codes (HI80D) Conventional High Voltage Resistor

HI80D 39 1G F
Part Number
HI80D
Rated Power (W)
20 2.5W
26 3.7W
39 5.2W
103 12W
154 20W
Resistance Value (Ω)
1K1 1.1KΩ
110K 110KΩ
1M1 1.1MΩ
110M 110MΩ
1G5 1.5GΩ
10G 10GΩ
Resistance Tolerance (%)
F ±1%
J ±5%
K ±10%

Note: TCR 100ppm/°C, (±50ppm/°C on request).


Order Codes (HI80DS) Conventional Miniature high voltage resistors

HI80DS 124 1G F
Part Number
HI80DS
Rated Power (W)
20 3W
32 7W
78 15W
103 20W
154 30W
Resistance Value (Ω)
1K1 1.1KΩ
110K 110KΩ
1M1 1.1MΩ
110M 110MΩ
1G5 1.5GΩ
10G 10GΩ
Resistance Tolerance (%)
J ±5%
K ±10%

Note: TCR 100ppm/°C, (±50ppm/°C on request).


Order Codes (HI80T) Ultra-Precision High Voltage Resistor

HI80T 32 500M B
Part Number
HI80T
Rated Power (W)
20 0.8W
32 1.2W
52 2W
154 6W
Resistance Value (Ω)
10 10Ω
1K1 1.1KΩ
110K 110KΩ
1M1 1.1MΩ
500M 500MΩ
Resistance Tolerance (%)
B ±0.1%
D ±0.5%
F ±1%

Note: TCR ±25ppm/°C, (±15ppm/°C on request).


Order Codes (HI80P) High-Power High Voltage Resistor

HI80P 20 a 1G F
Part Number
HI80P
Rated Power (W)
20 20W
30 30W
150 150W
300 300W
Type
a
b
c
Resistance Value (Ω)
10 10Ω
1K1 1.1KΩ
110K 110KΩ
1M1 1.1MΩ
110M 110MΩ
10G 10GΩ
Resistance Tolerance (%)
D ±0.5%
F ±1%
J ±5%
K ±10%

Note: TCR ±50ppm/°C, (±25ppm/°C on request).
