High current Round Edgewound Power Resistors (DRE)

Round Edgewound Power Resistors (DRE) Introduction

Token coiling customer special round edgewound resistors fit renewable energy, dynamic braking, and inverters design

< >
  • Round Edgewound High Current Power Resistor (DRE)
  • High Current Round Edgewound Resistor (DRE)
  • Round Edgewound High Current Resistor (DRE)
  • Round Edgewound Power Resistors (DRE)

Token (DRE) Round Edgewound Resistor is a versatile, heavy-duty unit with lightweight construction, consisting of a non-corrodible, high quality stainless steel alloy. This tough resistor is appropriate for the following applications: VFD braking, motor control, load banks and neutral grounding applications.

(DRE) resistor includes through-rods, through-bars, fixed terminals, hardware and stainless steel element. It is supported by a mounting bar which is slotted at both end. Fixed terminations are made by welding stainless steel tabs to either end of the element, or at various points for multiple connections. The ribbon-like element is coiled on edge in the form of a helix, and then spun onto a porcelain core which a threaded rod passing through the center of the ceramic core.

Token (DRE) series is also available in many mounting configurations such as stud mount version, universal edgewound, mounting bracket options of Vishay, or Ohmite. Many standard hardware options allow resistors to be purchased fully assembled, allowing easy integration into the final assembly. Assemblies are wired in parallel or in series to meet the needs of the application. Terminal blocks and thermal switches are also available.

Value-add wiring and connectors allow for a "plug-and-play" solution that easily integrates into the final assembly. Custom resistors are designed to order by our engineers and can be customized to fit unique electrical and mechanical constraints.

Downloads complete PDF version (DRE) Power Round Edgewound High current Resistor. Contact us with your specific needs.

Applications :
  • Load Banks, Motor Starting Resistor.
  • Power Industrial Machinery Resistors.
  • Wind Turbines, Electric Distribution Resistors.
  • Dynamic Braking Resistors, Plugging Resistor, Harmonic Filters.
Customer special design options:
  • Connection: Wire leads, connectors, terminal type, size, set-in, and material.
  • Mechanical: Overall dimensions, mounting type, and configuration, insulation.
  • Electrical: Tolerance, wattage, resistance, dielectric withstanding voltage, surge ability, temperature coefficient.
Features:
  • Power Current from 5.1(A) to 105(A), Resistance nominal tolerance ±10%(K)
  • Resistance value range 0.08Ω to 42.1#937;, suitable for high current applications

Round Edgewound Standard Dimensions ((DRE-P))

High Power (Dre) Edge Power Resistors are constructed by coiling a resistance-alloy ribbon wire and winding it on edge over specially designed ceramic insulators. The porcelain insulators separate coils of the resistance elements from each other and the frame. The advantage is an open coil construction is to easily accommodate surges and overloads that allows efficient heat dissipation.

Construction:
  1. Insulators provide insulation from threaded stud mount and proper turn-to-turn spacing.
  2. A sturdy welded steel frame supports the refractory insulators and finished with a zinc chromate conversion for corrosion resistance.
  3. The resistance element is a stainless steel strip with negligible temperature coefficient and anti-corrosion features,
    used for its current carrying capacity vs Ohms per length.
  4. The resistance element is designed by edgewinding a stainless strip into a continuous coil of the proper scaling length.
  5. Zinc plated terminals are welded to the resistive wire for a reliable electrical connection.
Round Edgewound Resistor (DRE-P)
Round Edgewound Resistor (DRE-P)
Round Edgewound Standard Dimensions (DRE-P)
Round Edgewound Standard Dimensions (DRE-P)
Length Code 2 3 4 5 6 7 8 9
Dimensions mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch
A 228.6 9 285.75 11.25 381 15 438.15 17.25 615.95 24.25 615.95 24.25 762 30 838.2 33
B 177.8 7 254.0 10 330.2 13 406.4 16 457.2 18 558.8 22 635 25 711.2 28

Edgewound Electrical Ratings (DRE-P)

Length Code 2 3 4 5 6 7 8 9
Amps (A) Resistance (Ω) at 25°C, Resistance Tolerance (10%)
11 2.3 3.7 5.1 6.5 7.9 9.3 10.7 12.0
12 1.9 3.1 4.3 5.4 6.6 7.8 8.9 10.0
18 1.1 1.7 2.4 3.0 3.6 4.3 4.9 5.5
21 0.79 1.26 1.73 2.2 2.67 3.14 3.6 4.1
24 0.62 1.0 1.4 1.75 2.1 2.5 2.87 3.2
27 0.50 0.80 1.1 1.4 1.7 2.0 2.3 2.6
29 0.44 0.70 0.96 1.2 1.5 1.7 1.95 2.2
35 0.31 0.50 0.69 0.88 1.1 1.3 1.5 1.7
40 0.24 0.39 0.54 0.68 0.83 0.97 1.12 1.3
45 0.22 0.35 0.46 0.61 0.74 0.87 1.0 1.1
50 0.17 0.27 0.37 0.47 0.57 0.67 0.77 0.87
60 - 0.20 0.27 0.33 0.40 0.47 0.58 0.65
70 - 0.15 0.20 0.25 0.30 0.35 0.40 0.45
85 - 0.12 0.15 0.18 0.23 0.27 0.31 0.35
105 - 0.09 0.12 0.15 0.18 0.21 0.24 0.27
  • The continuous current ratings are based on a 375°C temperature rise.
  • The resistance values are measured at 25°C and have a ±10% tolerance.

Round Edgewound Bracket Assembly Options Dimensions (DRE-G)

(DRE-G) Bar-Mount Edgewound Resistor
Round Edgewound Resistor (DRE-G)
(DRE-G1) Bracket Assembly Options Dimensions
Bracket Assembly Options Dimensions (DRE-G1)
(DRE-G2) Bracket Assembly Options Dimensions
Bracket Assembly Options Dimensions (DRE-G2)

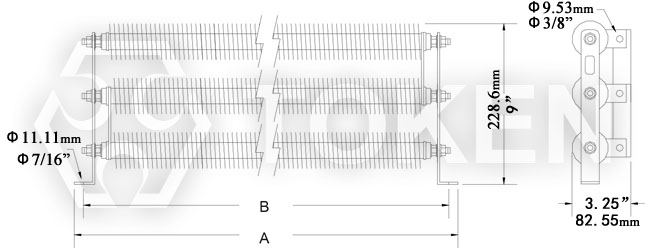

(DRE-G3) Bracket Assembly Options Dimensions)
Bracket Assembly Options Dimensions (DRE-G3)
Fully assembled on open-style brackets are available in Token (DRE-G) Edgewound Resistor Series. Mill galvanized brackets complete with all hardware and stainless steel bus bars with this open-style construction consist of resistors installed.
Length Code 2 3 4 5 6 7 8 9
Dimensions mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch
A 228.6 9 304.8 12 381 15 457.2 18 508 20 609.6 24 685.8 27 762 30
B 203.2 8 579.4 11 355.6 14 431.8 17 482.6 19 584.2 23 660.4 26 736.6 29
  • Standard assemblies of 2 or more coils include series jumpers. Add "-N" to eliminate jumpers and "-P" for parallel jumpers.

Edgewound Electrical Ratings (DRE-G)

Length Code 2 3 4 5 6 7 8 9
Amps (A) Resistance (Ω) at 25°C, Resistance Tolerance (10%)
11 2.3 3.7 5.1 6.5 7.9 9.3 10.7 12.0
12 1.9 3.1 4.3 5.4 6.6 7.8 8.9 10.0
18 1.1 1.7 2.4 3.0 3.6 4.3 4.9 5.5
21 0.79 1.26 1.73 2.2 2.67 3.14 3.6 4.1
24 0.62 1.0 1.4 1.75 2.1 2.5 2.87 3.2
27 0.50 0.80 1.1 1.4 1.7 2.0 2.3 2.6
29 0.44 0.70 0.96 1.2 1.5 1.7 1.95 2.2
35 0.31 0.50 0.69 0.88 1.1 1.3 1.5 1.7
40 0.24 0.39 0.54 0.68 0.83 0.97 1.12 1.3
45 0.22 0.35 0.46 0.61 0.74 0.87 1.0 1.1
50 0.17 0.27 0.37 0.47 0.57 0.67 0.77 0.87
60 - 0.20 0.27 0.33 0.40 0.47 0.58 0.65
70 - 0.15 0.20 0.25 0.30 0.35 0.40 0.45
85 - 0.12 0.15 0.18 0.23 0.27 0.31 0.35
105 - 0.09 0.12 0.15 0.18 0.21 0.24 0.27
  • The continuous current ratings are based on a 375°C temperature rise.
  • Power: varies. Tolerance: ± 10 %.

Bar-Mount Edgewound Dimensions (DRE-R)

(DRE-R) Bar-Mount Edgewound Resistor
Bar-Mount Edgewound Resistor (DRE-R)
(DRE-R) Bar-Mount Edgewound Dimensions
Bar-Mount Edgewound Dimensions (DRE-R)
(DRE-R) Bar-Mount Edgewound Dimensions
Bar-Mount Edgewound Resistor Custom Type
Token (Dre-R) Bar-Mounted Edgewounds are existing with the same electrical ratings as the Type (DRE-G) edgewounds. All units have the same approximate diameter of 2 inches (50.8mm). Units are equipped with a through-bar and terminal hardware.
Length Code 2 3 4 5 6 7 8
Dimensions mm inch mm inch mm inch mm inch mm inch mm inch mm inch
A 225.43 8.875 301.63 11.875 377.83 14.875 454.03 17.875 530.23 20.875 606.43 23.875 682.63 26.875
B 184.15 7.25 260.35 10.25 336.55 13.25 412.75 16.25 488.95 19.25 565.15 22.25 641.35 25.256

Edgewound Electrical Ratings (DRE-R)

Length Code 2 3 4 5 6 7 8
Amps (A) Resistance (Ω) at 25°C, Resistance Tolerance (10%)
5.1 7.9 13.6 19.3 25.0 30.7 36.4 42.1
5.9 6.3 10.9 15.4 20.0 24.5 29.0 33.5
6.6 5.3 9.2 13.0 17.0 20.8 24.6 28.4
7.6 4.1 7.1 10.0 13.0 15.9 18.8 21.7
8.3 3.4 5.9 8.5 11.0 13.5 16.0 18.5
9.4 2.70 4.60 6.50 8.50 10.4 12.3 14.2
10.3 2.10 3.70 6.30 6.80 8.30 9.80 11.3
11.8 1.70 2.90 4.20 5.40 6.60 7.80 9.00
12.7 1.40 2.40 3.50 4.50 5.50 6.50 7.50
14.6 1.10 1.90 2.70 3.50 4.30 5.10 5.90
16.3 0.88 1.50 2.20 2.80 3.40 4.00 4.60
18.4 0.69 1.20 1.70 2.20 2.70 3.10 3.50
26 0.56 0.90 1.20 1.60 1.90 2.20 2.50
29 0.45 0.73 1.00 1.30 1.50 1.75 2.00
33 0.35 0.56 0.77 1.00 1.20 1.40 1.60
39 0.26 0.42 0.58 0.75 0.90 1.05 1.20
41 0.23 0.36 0.51 0.67 0.80 0.93 1.06
43 0.21 0.33 0.46 0.60 0.72 0.85 0.98
47 0.17 0.28 0.38 0.50 0.60 0.70 0.80
50 0.12 0.20 0.28 0.37 0.45 0.53 0.61
54 0.11 0.18 0.25 0.33 0.40 0.47 0.54
57 0.10 0.16 0.23 0.30 0.36 0.42 0.48
63 0.80 0.13 0.19 0.25 0.30 0.35 0.40
68 0.07 0.12 0.18 0.22 0.26 0.30 0.34
75 0.06 0.10 0.14 0.18 0.21 0.25 0.30
78 0.052 0.088 0.12 0.16 0.16 0.22 0.25
89 0.046 0.078 0.11 0.14 0.17 0.20 0.23
91 0.040 0.070 0.10 0.12 0.14 0.16 0.18
100 0.033 0.057 0.08 0.10 0.12 0.14 0.16
  • The rating of continuous current (Amps) is based on a 375°C temperature rise.
  • Power: varies. Tolerance: ± 10 %.

Electrical Characteristics (DRE)

Test Item Specification Test Methods
Ambient Temperatures Ambient Temperature: -55°C ~350°C.
Derated current rating:
95% for 50°C ambient, 90% for 75°C ambient,
85% for 100°C ambient, 10% for 350°C ambient.
Standard ratings are based on maximum ambient temperatures of 40°C.
Continuous current ratings and temperatures Rise 375°C Max. The rating of continuous current is based on a 375°C temperature rise at ambient temperatures of 40°C.
Resistance tolerance Resistance Nominal Tolerance ±10%(K) for all units;
as low as ±3% if required.
JIS-C-5202 5-1
Thermal Shock Δ≤±(2%R+0.1Ω) JIS-C-5202 7.3,
Room temp 30 minutes, -55°C 15 minutes.
Terminal strength Δ≤±(2%R+0.1Ω) JIS-C-5202 6.1, 45N, 30S
Short-term Overload Δ≤±(2%R+0.1Ω) JIS-C-5202 5.5, 10PR, 5S.
  • Resistance and resistance tolerance were tested in-house at room temperature (25°C) with micro resistance meter.
  • Ambient Temperature: refers to the temperature inside the subject and around the specimen, not to the air-temperature outside the subject.

Edgewound Derating Curve (DRE)

Edgewound Derating Curve (DRE) Derating Curve
Edgewound Derating Curve (DRE)

Order Codes (DRE)

DRE 2 11 2R3 K G
Part Number
DRE
Length Code
2
3
4
5
6
7
8
9
Amps (A)
11
12
18
21
24
27
29
35
...
Resistance Value
2R3 2.3Ω
R62 0.62Ω
R37 0.37Ω
Resistance Tolerance (%)
K ±10%
Mounting Options
P Standard
R Bar-Mount
G1 Standard Bracket
G2 2Pcs Bracket Assembly
Series Jumper included
G3 3Pcs Bracket Assembly
Series Jumper included
(for more Assembly, G4, G5...)
G2P 2Pcs Bracket Assembly
with Parallel Jumper
G3P 3Pcs Bracket Assembly
with Parallel Jumper
(for more Assembly, G4P, G5P...)
G2N 2Pcs Bracket Assembly No Jumper
G3N 3Pcs Bracket Assembly No Jumper
(for more Assembly, G4N, G5N...)
