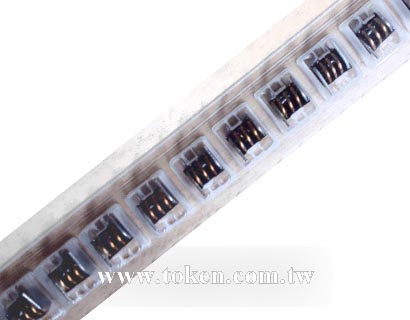

Token offers The Smallest Flat Top Air Core Coils (Spring Inductors) for Only (1.8 x 2.0 x 2.0 mm).

< >
  • SMD Ultra-Miniature (TRAM)
  • SMD Ultra-Miniature (TRAM)
  • SMD Ultra-Miniature (TRAM)
  • SMD Ultra-Miniature (TRAM)

The latest range of air core surface mount coils from Token is fully compliant with RoHS legislation and available immediately in full production volumes. The (TRAM) series provides a cost effective and miniaturised alternative to the earlier version.

The wire-wound construction with a miniature core is ideal for high frequency applications. These new SMD coils measure 1.8 x 2.0 mm with a low 2.0 mm profile, which combined with a mould-sealed surface, makes them particularly suitable for high-density mounting.

Indeed, the (TRAM) series features high Q value in the high frequency range, offers stable inductance at high frequency and has high self-resonant frequency. Meanwhile, the low DC resistance design is ideal for low loss, high output and low power consumption. A wide range of devices in the series, with inductance values ranging from 3.9 to 538nH, allows designers to select the most appropriate part of their application.

These chip air core coils are aimed at high frequency circuits in telecommunications equipment, including power amplifiers, antenna modules, VCOs and SAWs, and in mobile phones, such as GSM, CDMA, and PDC. Other applications include digital TV tuners, wireless LAN and Bluetooth devices.

This new SMD inductor provides a narrow inductance deviation with a complete range of inductance values, making chip inductors an excellent choice for high frequency circuit matching. SMD coils can be customed designs and tighter tolerances available on request. Application of RF air core coil specific designs also available including different inductance values and Q specifications.

Custom parts are available on request. Token will also produce devices outside these specifications to meet specific customer requirements, contact our sales for more information.

Download complete specification Chip Flat Top Air Core Spring Inductors (TRAM) PDF.

Features:
  • High frequency
  • Excellent SRFs and high Q
  • Good constitutive property and easy to operate
Applications :
  • Pager, Cordless phone.
  • Communication Products.
  • Intercom, CATV. High Freq.

Dimensions (Unit: mm) (TRAM0603 TRAM0805 TRAM1008)

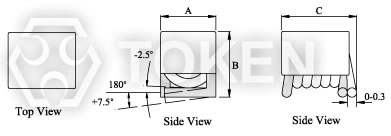

Ultra-miniature (TRAM0603 TRAM0805 TRAM1008) Dimensions
Ultra-Miniature (TRAM0603 TRAM0805 TRAM1008) Dimensions
Type A (max) B (max) C ± 0.2
TRAM0603 1.80 2.00 2.00
TRAM0805 1.80 2.10 2.85
TRAM1008 1.90 2.20 3.20

Dimensions (Unit: mm) (TRAM2215 TRAM4015 TRAM132)

Ultra-miniature (TRAM2215 TRAM4015 TRAM132) Dimensions
Ultra-Miniature (TRAM2215 TRAM4015 TRAM132) Dimensions
Type A B C D E
TRAM2215 2.2 ± 0.3 1.4 ± 0.2 1.4 ± 0.2 1.8 ± 0.3 0.9 ± 0.3
TRAM4015 4.0 ± 0.3 1.4 ± 0.2 1.4 ± 0.2 3.5 ± 0.3 0.9 ± 0.3
TRAM132 9.0(max) 4.4 ± 0.3 4.6 ± 0.4 8.0 ± 0.5 1.3 ± 0.4

Dimensions (Unit: mm) (TRAM3730 TRAM7030)

Ultra-Miniature (TRAM3730 TRAM7030) Dimensions
Type A ± 0.3 B ± 0.2 C ± 0.2 D ± 0.3 E ± 0.2
TRAM3730 3.30 2.60 2.70 2.90 0.70
TRAM7030 6.30 3.60 3.70 5.80 0.70

Dimensions (Unit: mm) (TRAM1812)

Ultra-Miniature (TRAM1812) Dimensions
Type A ± 0.3 B ± 0.2 C ± 0.2 D ± 0.4 E ± 0.3
TRAM1812 4.90 3.50 3.50 4.30 1.00

Order Codes (TRAM0603 TRAM0805 TRAM1008)

TRAM 1008 - 6N8 K

Part Number
TRAM
Size (L×W)
(mm)
0603 1.80×2.00mm
0805 1.80×2.10mm
1008 1.90×2.20mm

Inductance
6N8 6.8nH
10N 10.0nH
R10 100.00nH
Tolerance
K 10%
M 20%

Order Codes (TRAM2215 TRAM4015 TRAM132)

TRAM 2215 - K

Part Number
TRAM
Size (L×W)
(mm)
2215 2.20×1.40mm
4015 4.00×1.40mm
132 9.00×4.40mm

Turns

Order Codes (TRAM3730 TRAM7030)

TRAM 3730 - A01T

Part Number
TRAM
Size (L×W)
(mm)
3730 3.30×2.60mm
7030 6.30×3.60mm

Turns

Order Codes (TRAM1812)

TRAM 1812 - 22N K

Part Number
TRAM
Size (L×W)
(mm)
1812 4.90×3.50mm

Inductance
22N 22nH
R10 100nH
Tolerance
J 5%
K 10%
