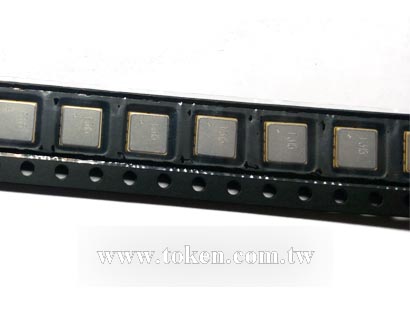

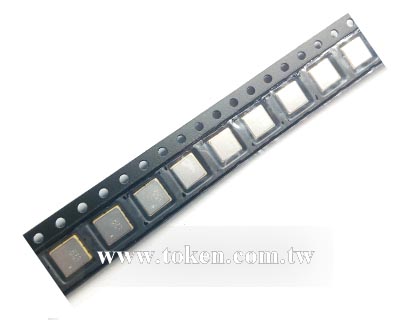

聲表面波濾波器 (TSF) 產品簡介
<
>
聲表濾波器是利用石英、鈮酸鋰、鈦酸鋇晶體，具有壓電效應的材料做成的。當晶體受到機械作用時，產生與壓力成正比的電場的現象。具有壓電效應的晶體，在受到電信號的作用時，也會產生彈性形變而發出機械波（聲波），即可把電信號轉為聲信號。由於這種聲波只在晶體表面傳播，故稱為聲表面波。
聲表面波濾波器的英文縮寫為 SAW Surface Acoustic Wave Filters，具有體積小，重量輕、性能可靠、不需要複雜調整的特點。
中國德鍵電子生產的聲表面波濾波器、聲表面波諧振器符合 RoHS 規範，Lead-Free 無鉛標準，使用 Lead-Free Logo 無鉛標誌。
提供完整貼片、插件聲表尺寸，頻率範圍齊全，提供聲表面波系列產品目錄下載。可依客戶的需求製造，若需特殊規格型式，請聯繫中國德鍵電子業務部。
下載 PDF 版本: 聲表面波濾波器 (TSF)。
特性 :
- 小尺寸
- 可用通帶: 54MHz
- 移動電話機用低損耗型RF濾波器，接收帶寬
- 低損耗聲表濾波器適用於移動通信，遠程控制，衛星接收機
聲表面波元件 - 汽車電子及遠程控制用系列 前端濾波器 規格
| 型號 | 中心頻率. (MHz) |
插入損耗(dB) | 3dB 帶寬(MHz) | 封裝 | |
| 貼片式 | 插件式 | ||||
| TSF295D00-D1 | 295 | 3.0 | 0.6 | TO-39 | |
| TSF302D00A-S4 | 302 | 2.5 | 0.75 | QCC8C | |
| TSF302D00B-S7 | 302 | 2.5 | 0.75 | DCC6 | |
| TSF303D825A-D1 | 303.825 | 3.0 | 0.6 | TO-39 | |
| TSF303D825B-S4 | 303.825 | 3.0 | 0.6 | QCC8C | |
| TSF303D875A-D1 | 303.875 | 3.0 | 0.6 | TO-39 | |
| TSF303D875B-S4 | 303.875 | 3.0 | 0.6 | QCC8C | |
| TSF310D00-S4 | 310 | 3.0 | 0.8 | QCC8C | |
| TSF315D00A-D1 | 315 | 3.0 | 0.6 | TO-39 | |
| TSF315D00B-D2 | 315 | 3.0 | 0.6 | F-11 | |
| TSF315D00C-S4 | 315 | 3.0 | 0.6 | QCC8C | |
| TSF315D00D-S4 | 315 | 2.5 | 1.3 | QCC8C | |
| TSF315D00E-S6 | 315 | 2.5 | 1.3 | QCC8B | |
| TSF315D50-D1 | 315.5 | 3.0 | 0.6 | TO-39 | |
| TSF318D00-D1 | 318 | 3.0 | 0.6 | TO-39 | |
| TSF319D50-D1 | 319.5 | 2.5 | 0.7 | TO-39 | |
| TSF345D00A-S6 | 345 | 2.5 | 4.5 | QCC8B | |
| TSF345D00B-S4 | 345 | 3.0 | 0.9 | QCC8C | |
| TSF372D50-D1 | 372.5 | 3.0 | 0.6 | TO-39 | |
| TSF390D00-S4 | 390 | 3.0 | 1.0 | QCC8C | |
| TSF391D25-D1 | 391.25 | 2.5 | 0.6 | TO-39 | |
| TSF395D00-S4 | 395 | 3.0 | 1.0 | QCC8C | |
| TSF401D65-S4 | 401.65 | 3.0 | 0.6 | QCC8C | |
| TSF401D90-D1 | 401.9 | 3.0 | 0.6 | TO-39 | |
| TSF418D00A-D1 | 418 | 3.0 | 0.6 | TO-39 | |
| TSF418D00B-S4 | 418 | 3.0 | 0.6 | QCC8C | |
| TSF419D20-S4 | 419.2 | 3.0 | 1.2 | QCC8C | |
| TSF430D50A-D1 | 430.5 | 3.0 | 0.6 | TO-39 | |
| TSF430D50B-D2 | 430.5 | 3.0 | 0.6 | F-11 | |
| TSF431D50A-D2 | 431.5 | 2.5 | 0.58 | F-11 | |
| TSF431D50B-S4 | 431.5 | 2.5 | 0.58 | QCC8C | |
| TSF433D42A-S4 | 433.42 | 3.5 | 0.6 | QCC8C | |
| TSF433D42B-S7 | 433.42 | 3.0 | 0.9 | DCC6 | |
| TSF433D92A-D1 | 433.92 | 3.0 | 0.6 | TO-39 | |
| TSF433D92B-D1 | 433.92 | 2.0 | 0.73 | TO-39 | |
| TSF433D92C-D2 | 433.92 | 3.0 | 0.6 | F-11 | |
| TSF433D92D-S4 | 433.92 | 3.0 | 0.6 | QCC8C | |
| TSF433D92E-S4 | 433.92 | 2.0 | 0.73 | QCC8C | |
| TSF433D92F-S4 | 433.92 | 2.5 | 0.6 | QCC8C | |
| TSF433D92G-S4 | 433.92 | 2.5 | 0.95 | QCC8C | |
| TSF433D92H-S4 | 433.92 | 2.2 | 0.7 | QCC8C | |
| TSF433D92I-S6 | 433.92 | 2.8 | 6.0 | QCC8B | |
| TSF433D92J-S6 | 433.92 | 2.3 | 0.56 | QCC8B | |
| TSF433D92K-S6 | 433.92 | 2.3 | 0.56 | QCC8B | |
| TSF433D92L-S9 | 433.92 | 2.8 | 1.0 | DCC6C | |
| TSF433D92M-S7 | 433.92 | 2.3 | 0.56 | DCC6 | |
| TSF434D42A-D1 | 434.42 | 3.0 | 0.7 | TO-39 | |
| TSF434D42B-S4 | 434.42 | 3.0 | 0.6 | QCC8C | |
| TSF439D25-D1 | 439.25 | 3.0 | 0.6 | TO-39 | |
| TSF451D25-D1 | 451.25 | 2.5 | 0.48 | TO-39 | |
| TSF463D912-S4 | 463.912 | 2.5 | 1.2 | QCC8C | |
| TSF499D25-D1 | 499.25 | 3.0 | 0.54 | TO-39 | |
| TSF801D125A-S7 | 801.125 | 5.8 | 0.56 | DCC6 | |
| TSF801D125B-S6 | 801.125 | 5.0 | 0.58 | QCC8B | |
| TSF859D15-D2 | 859.15 | 4.0 | 1.0 | F-11 | |
| TSF868D00-S4 | 868 | 3.5 | 1.2 | QCC8C | |
| TSF868D30-S4 | 868.3 | 4.0 | 1.2 | QCC8C | |
| TSF868D35A-D2 | 868.35 | 4.0 | 1.2 | F-11 | |
| TSF868D35B-S4 | 868.35 | 4.0 | 1.2 | QCC8C | |
| TSF868D35C-S6 | 868.35 | 3.5 | 1.8 | QCC8B | |
| TSF868D69-S4 | 868.69 | 3.8 | 1.9 | QCC8C | |
| TSF868D95-S4 | 868.95 | 3.5 | 1.2 | QCC8C | |
| TSF869D69-S4 | 869.69 | 3.8 | 1.8 | QCC8C | |
| TSF902D30-S4 | 902.3 | 3.5 | 1.2 | QCC8C | |
| TSF908D00-S6 | 908 | 3.0 | 2.0 | QCC8B | |
| TSF914D50-D2 | 914.5 | 3.8 | 1.2 | F-11 | |
| TSF915D00A-D1 | 915 | 3.5 | 1.2 | TO-39 | |
| TSF915D00B-S4 | 915 | 4.0 | 1.2 | QCC8C | |
| TSF915D00C-S7 | 915 | 3.8 | 1.8 | DCC6 | |
| TSF916D50A-D1 | 916.5 | 4.0 | 1.2 | TO-39 | |
| TSF916D50B-D2 | 916.5 | 3.5 | 1.2 | F-11 | |
| TSF916D50C-S4 | 916.5 | 4.0 | 1.2 | QCC8C | |
| TSF916D50E-S4 | 916.5 | 4.0 | 1.2 | QCC8C | |
| TSF916D50F-S6 | 916.5 | 4.8 | 1.35 | QCC8B | |
| TSF921D60-S6 | 921.6 | 2.6 | 1.9 | QCC8B | |
| TSF927D20-S7 | 927.2 | 3.0 | 1.45 | DCC6 | |
| TSF931D00-S4 | 931 | 3.5 | 1.8 | QCC8C | |
聲表濾波器數字衛星廣播 （DSB 接收機）規格
| 型號 | 中心頻率 (MHz) |
插入損耗(dB) | 3dB 帶寬(MHz) | 應用 | 封裝 | |
| 貼片式 | 插件式 | |||||
| TSF480D00A-D5 | 480 | 21 | 18 | One-channel, Satellite Filters | TO39-2 | |
| TSF480D00B-S4 | 480 | 21 | 18 | One-channel, Satellite Filters | QCC8C | |
| TSF480D00C-D5 | 480 | 22.5 | 27 | One-channel, Satellite Filters | TO39-2 | |
| TSF480D00D-S4 | 480 | 22.5 | 27 | One-channel, Satellite Filters | QCC8C | |
| TSF480D00E-D5 | 480 | 20 | 27 | One-channel, Satellite Filters | TO39-2 | |
| TSF480D00F-D5 | 480 | 21 | 36 | One-channel, Satellite Filters | TO39-2 | |
| TSF480D00G-S4 | 480 | 21 | 36 | One-channel, Satellite Filters | QCC8C | |
| TSF480D00H-D1 | 480 | 15 | 16 | One-channel, Satellite Filters | TO-39 | |
| TSF480D00I-S4 | 480 | 12.5 | 15.3 | One-channel, Satellite Filters | QCC8C | |
| TSF480D00J-D5 | 480 | 22 | 38.6 | One-channel, Satellite Filters | TO39-2 | |
| TSF479D50A-D5 | 479.5 | 21.5 | 8 | One-channel, Satellite Filters | TO39-2 | |
| TSF479D50B-S4 | 479.5 | 21.5 | 8 | One-channel, Satellite Filters | QCC8C | |
| TSF479D50C-D5 | 479.5 | 18 | 6.5 | One-channel, Satellite Filters | TO39-2 | |
| TSF479D50D-D2 | 479.5 | 22 | 16 (5.5 dB) | One-channel, Satellite Filters | F-11 | |
| TSF479D50E-S4 | 479.5 | 22 | 16 (5.5 dB) | One-channel, Satellite Filters | QCC8C | |
| TSF402D78B-S4 | 402.78 | 20.5 / 20.0 | 15.5 / 28.0 | Two-channel, Satellite Filters | QCC8C | |
聲表濾波器移動通信用 - 射頻濾波器 GPS 用 規格
聲表濾波器移動通信用 - 中頻濾波器無線局域網 規格
| 型號 | 中心頻率 (MHz) |
3dB帶寬 (MHz) | 插入損耗(dB) | 封裝 | |
| 貼片式 | 插件式 | ||||
| TSF280D00-S4 | 280 | 20 | 11 | QCC8C | |
| TSF374D00A-D1 | 374 | 22 | 9 | TO-39 | |
| TSF374D00B-D1 | 374 | 22 | 8.5 | TO-39 | |
| TSF374D00C-S4 | 374 | 22 | 9 | QCC8C | |
| TSF374D00D-S4 | 374 | 22 | 8.5 | QCC8C | |
| TSF374D00E-S4 | 374 | 19 | 9 | QCC8C | |
| TSF374D00F-S4 | 374 | 20.5 | 9 | QCC8C | |
| TSF374D00G-S6 | 374 | 23 | 9 | QCC8B | |
| TSF374D00H-S6 | 374 | 21 | 9 | QCC8B | |
聲表濾波器 (TSF) 系列 料號標識
| TSF | 302D00 | A | S1 | |||||||||||||||||||||
 | | | | |||||||||||||||||||||
|
|
|
|
|||||||||||||||||||||
