Introduction (TPSRH-2D/3D/4D/5D/6D/8D)

Power high-current inductors feature wide inductance range with low DCR low profile.

< >
  • SMD Low Profile Low DCR Inductors - TPSRH5D28 series

Token has unveiled (TPSRH-2D/3D/4D/5D/6D/8D) surface mount low-profile inductor series. Those compact devices feature ultra-low 1.1 mm to maximum 6.0 mm profile, with a wide inductance range and low direct current resistance (DCR).

Token enhances power wirewound inductor (TPSRH-2D/3D/4D/5D/6D/8D) family series covering complete footprint and inductance from 1.00 μH to 180.00 μH, low DCR, and Rated Current uo to 7.0A.

Token (TPSRH-2D/3D/4D/5D/6D/8D) with wire wound and magnetically shielded construction offers a variety of characteristics and high performace. Customers can select the optimum characteristics by choosing from footprint, DCR, and a wide range of inductance values and tolerances with some types offering magnetic shielding.

The series is lead-free and RoHS compliant. Custom parts are available on request. Token will also produce devices outside these specifications to meet specific customer requirements.

Application of specific designs also available including different inductance and frequency specifications adjusted to requirements. Please contact our sales for more information.

Download Complete Datasheet Low-DCR Low-Profile High-Current Inductors (TPSRH) PDF.

Features :
  • Magnerically shielded construction.
  • Excellent solderabillity and high heat resistance.
  • Various high power inductors are superior to be high Saturation for surface mounting.
Applications :
  • Power Supply For Vcrs; Oa Equipment Digital Camera
  • Dc/Dc Converters, LCD Television Set, Notebook Pc, Portable Communication Equipments.

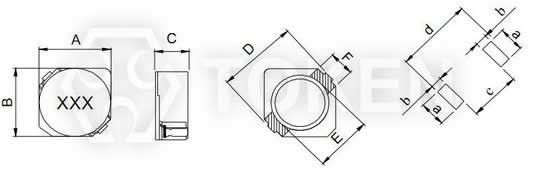

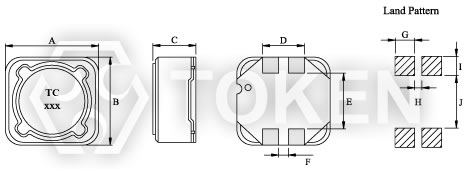

Dimensions & Configurations (Unit: mm) (TPSRH-2D11~3D14)

Surface Mount Shielded Inductor (TPUME) Dimensions
SMD Shielded Inductor (TPSRH-2D11~3D14) Dimensions
Surface Mount Shielded Inductor (TPUME)
Surface Mount Shielded Inductor (TPSRH-2D11~3D14)
RART NO A±0.3 B±0.3 C±0.3 D ( Ref ) E ( Ref ) F ( Ref )
TPSRH2D11 2.9 2.9 1.1 4.2 2.1 1.0
TPSRH2D14 2.9 1.3 4.2 2.1 1.0 1.3
TPSRH2D16 2.9 2.9 1.8 4.2 2.1 1.0
TPSRH2D18 2.9 2.9 1.8 4.2 2.1 1.0
TPSRH3D14 3.7 3.7 1.6 5.2 2.8 1.1

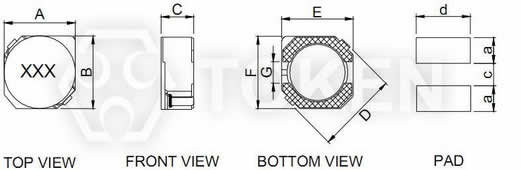

Dimensions & Configurations (Unit: mm) (TPSRH-3D16~6D38)

Surface Mount Shielded Inductor (TPUME) Dimensions
SMD Shielded Inductor (TPSRH-3D16~6D38) Dimensions
Surface Mount Shielded Inductor (TPUME)
Surface Mount Shielded Inductor (TPSRH-3D16~6D38)
RART NO A±0.3 B±0.3 C ( Max ) D ( Max ) E ( Red ) G ( Red ) a b c d
TPSRH3D16 3.9 3.9 2.0 5.6 3.5 1 1.6 1.6 1.4 4.6
TPSRH3D18 3.9 3.9 2.1 5.6 3.7 1 1.6 1.6 1.4 4.6
TPSRH3D28 3.9 3.9 3.2 5.6 3.7 1 1.6 1.6 1.4 4.6
TPSRH4D18 4.9 4.9 2.0 6.9 4.5 1.5 1.9 1.9 1.5 5.3
TPSRH4D28 4.9 4.9 3.0 6.9 4.5 1.5 1.9 1.9 1.5 5.3
TPSRH5D18 5.9 5.9 2.0 8.2 5.5 2.0 2.15 2.15 2.0 6.3
TPSRH5D28 5.9 5.9 3.0 8.2 5.5 2.0 2.15 2.15 2.0 6.3
TPSRH6D28 6.9 6.9 3.0 9.5 6.5 2.0 2.65 2.65 2.0 7.0
TPSRH6D38 6.9 6.9 4.0 9.5 6.5 2.0 2.65 2.65 2.0 7.3

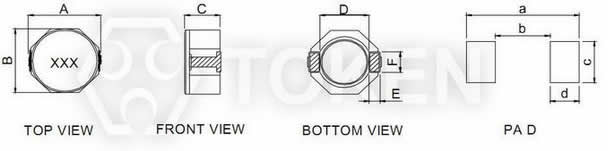

Dimensions & Configurations (Unit: mm) (TPSRH-8D28~8D58)

Surface Mount Shielded Inductor (TPUME) Dimensions
SMD Shielded Inductor (TPSRH-8D28~8D58) Dimensions
Surface Mount Shielded Inductor (TPUME)
Surface Mount Shielded Inductor (TPSRH-8D28~8D58)
RART NO A±0.3 B±0.3 C ( Max ) D ( Red ) E ( Red ) F ( Red ) a ( Red ) b ( Red ) c ( Red ) d ( Red )
TPSRH8D28 8 8 3.0 6.3 1.2 2.5 10.1 6.1 2.8 2.0
TPSRH8D38 8 8 4.0 6.3 1.2 2.5 10.1 6.1 2.8 2.0
TPSRH8D43 8 8 4.5 6.3 1.2 2.5 10.1 6.1 2.8 2.0
TPSRH8D58 8 8 6.0 6.3 1.2 2.5 10.1 6.1 2.8 2.0

Electrical Characteristics (TPSRH2D/TPSRH3D)

Inductance (µH) TPSRH2D11 TPSRH2D14 TPSRH2D16 TPSRH2D18 TPSRH3D14
Marking L (µH) DCR
(Ω)Max.
IDC
(A)
DCR
(Ω)Max.
IDC
(A)
DCR
(Ω)Max.
IDC
(A)
DCR
(Ω)Max.
IDC
(A)
DCR
(Ω)Max.
IDC
(A)
1R2 1.2 0.056 1.000 0.057 2.00 0.045 2.150
1R5 1.5 0.068 0.900 0.073 1.800
1R8 1.8 0.075 1.650
2R2 2.2 0.098 0.780 0.094 1.550 0.047 0.860 0.041 0.850 0.069 1.600
2R5 2.5 0.103 0.700
2R7 2.7 0.117 1.350 0.061 0.820 0.088 1.450
3R3 3.3 0.130 0.630 0.067 0.720 0.054 0.750 0.100 1.350
4R7 4.7 0.177 0.500 0.222 1.000 0.101 0.620 0.078 0.630 0.150 1.100
5R6 5.6 0.187 0.500 0.240 0.950 0.123 0.570
6R8 6.8 0.27 0.450 0.330 0.850 0.158 0.500 0.106 0.520
8R2 8.2 0.300 0.400 0.350 0.800 0.171 0.450 0.238 0.820
100 10 0.400 0.430 0.400 0.700 0.195 0.420 0.180 0.430 0.262 0.750
120 12 0.394 0.620 0.223 0.390 0.350 0.670
150 15 0.248 0.350 0.220 0.350 0.488 0.600
180 18 0.316 0.320
220 22 0.418 0.280 0.320 0.300 0.575 0.520
270 27 0.466 0.260
330 33 0.460 0.240
470 47 0.660 0.200
Note:
  • Measuring Frequency. L: 100KHz/0.25v.
  • IDC:The current when the inductance becomes 35% lower than its nominal value. and temperature rise 40°C Δt = 40°C (ta = 20°C).

Electrical Characteristics (TPSRH3D/TPSRH4D)

Inductance (µH) TPSRH3D16 TPSRH3D18 TPSRH3D28 TPSRH4D18 TPSRH4D28
Marking L (µH) DCR
(Ω)Max.
IDC
(A)
DCR
(Ω)Max.
IDC
(A)
DCR
(Ω)Max.
IDC
(A)
DCR
(Ω)Max.
IDC
(A)
DCR
(Ω)Max.
IDC
(A)
1R0 1.0 0.03 2.00 0.056 2.50 0.027 2.70
1R2 1.2 0.027 1.68 0.024 2.56
1R5 1.5 0.04 1.60 0.073 2.30 0.034 1.65 0.030 2.46
1R8 1.8 0.046 1.4 0.083 2.00 0.031 2.2
2R2 2.2 0.054 1.30 0.096 1.90 0.043 1.32 0.035 2.04
2R7 2.7 0.069 1.10 0.124 1.70 0.055 1.28 0.038 1.80
3R3 3.3 0.075 1.00 0.127 1.50 0.072 2.00 0.066 1.01 0.043 1.57
3R9 3.9 0.090 0.90 0.162 1.40 0.074 0.88 0.059 1.44
4R7 4.7 0.112 0.85 0.188 1.35 0.088 1.65 0.089 0.845 0.062 1.32
5R6 5.6 0.118 0.800 0.230 1.2 0.118 0.80 0.074 1.17
6R8 6.8 0.141 0.700 0.270 1.10 0.119 1.24 0.143 0.76 0.087 1.12
8R2 8.2 0.184 0.650 0.155 0.68 0.10 1.04
100 10 0.230 0.600 0.390 0.90 0.145 1.05 0.179 0.61 0.125 1.00
120 12 0.250 0.540 0.400 0.800 0.216 0.56 0.136 0.84
150 15 0.310 0.500 0.480 0.75 0.213 0.90 0.240 0.50 0.173 0.76
180 18 0.380 0.420 0.530 0.65 0.338 0.48 0.208 0.72
220 22 0.500 0.380 0.74 0.70 0.335 0.76 0.397 0.41 0.222 0.70
270 27 0.570 0.350 0.810 0.500 0.441 0.35 0.261 0.58
330 33 0.750 0.300 1.090 0.45 0.481 0.58 0.570 0.32 0.331 0.56
390 39 1.190 0.40 0.709 0.30 0.384 0.50
470 47 1.680 0.35 0.599 0.48 0.78 0.28 0.380 0.48
560 56 0.970 0.26 0.480 0.41
680 68 1.30 0.22 0.66 0.35
820 82 1.35 0.22 0.66 0.41
101 100 0.970 0.26 0.480 0.41
121 120 1.95 0.18 0.950 0.27
151 150 2.12 0.15 0.180 0.41
181 180 2.50 0.14 1.330 0.22
Note:
  • Measuring Frequency. L: 100KHz/0.25v.
  • IDC:The current when the inductance becomes 35% lower than its nominal value. and temperature rise 40°C Δt = 40°C (ta = 20°C).

Electrical Characteristics (TPSRH5D/TPSRH6D)

Inductance (µH) TPSRH5D18 TPSRH5D28 TPSRH6D28 TPSRH6D38
Marking L (µH) DCR
(Ω)Max.
IDC
(A)
DCR
(Ω)Max.
IDC
(A)
DCR
(Ω)Max.
IDC
(A)
DCR
(Ω)Max.
IDC
(A)
2R7 2.7 0.033 2.60
3R0 3.0 0.053 0.230 0.024 3.00
3R3 3.3 0.035 2.30 0.026 3.5
3R9 3.9 0.065 2.0 0.044 2.2 0.027 2.60 0.028 3.00
4R1 4.1 0.077 1.95
6R8 6.8 0.109 1.50 0.039 2.30
8R2 8.2 0.069 1.60
100 10 0.139 1.20 0.091 1.30 0.065 1.70 0.053 2.00
120 12 0.195 1.10 0.098 1.20 0.070 1.55 0.060 1.70
150 15 0.220 0.97 0.115 1.10 0.084 1.40 0.073 1.60
180 18 0.270 0.85 0.138 1.00 0.095 1.32 0.086 1.50
220 22 0.350 0.80 0.160 0.90 0.128 1.20 0.099 1.30
270 27 0.380 0.75 0.203 0.85 0.142 1.05 0.117 1.2
330 33 0.480 0.65 0.238 0.75 0.165 0.97 0.146 1.10
390 39 0.60 0.57 0.270 0.70 0.210 0.86 0.187 1.00
470 47 0.70 0.54 0.330 0.62 0.238 0.80 0.217 0.95
560 56 0.84 0.50 0.400 0.58 0.277 0.73 0.230 0.85
680 68 0.95 0.43 0.510 0.50 0.304 0.65 0.270 0.75
820 82 1.24 0.41 0.570 0.46 0.390 0.60 0.330 0.70
101 100 1.34 0.36 0.69 0.42 0.535 0.54 0.420 0.65
Note:
  • Measuring Frequency. L: 100KHz/0.25v.
  • IDC:The current when the inductance becomes 35% lower than its nominal value. and temperature rise 40°C Δt = 40°C (ta = 20°C).

Electrical Characteristics (TPSRH8D)

Inductance (µH) TPSRH8D28 TPSRH8D38 TPSRH8D43 TPSRH8D58
Marking L (µH) DCR
(Ω)Max.
IDC
(A)
DCR
(Ω)Max.
IDC
(A)
DCR
(Ω)Max.
IDC
(A)
DCR
(Ω)Max.
IDC
(A)
1R8 1.8 0.015 7.00
2R0 2.0 0.22 5.00 0.22 7.00
2R5 2.5 0.024 4.5 0.017 6.50
3R3 3.3 0.027 6.00
3R5 3.5 0.031 4.00 0.024 5.00
3R9 3.9 0.030 4.50 0.016 4.10
4R7 4.7 0.040 3.40 0.029 4.60 0.033 4.30
5R0 5.0 0.017 3.80
6R2 6.2 0.049 3.00 0.036 4.00 0.02 3.30
6R8 6.8 0.045 4.40
7R3 7.3 0.060 2.80
100 10 0.079 2.50 0.048 3.00 0.059 3.08 0.026 2.6
150 15 0.109 1.90 0.067 2.75 0.083 2.24 0.037 2.30
220 22 0.157 1.60 0.105 2.30 0.118 2.00 0.046 1.70
330 33 0.205 1.30 0.157 1.75 0.160 1.50 0.065 1.50
470 47 0.310 1.15 0.189 1.52 0.230 1.33 0.091 1.20
680 68 0.430 0.92 0.290 1.30 0.280 1.12 0.13 1.00
101 100 0.56 0.75 0.410 1.05 0.440 0.91 0.18 0.80
Note:
  • Measuring Frequency. L: 100KHz/0.25v.
  • IDC:The current when the inductance becomes 35% lower than its nominal value. and temperature rise 40°C Δt = 40°C (ta = 20°C).

Order Codes (TPSRH-2D/3D/4D/5D/6D/8D)

TPSRH2D11 - 1R2 N

Part Number
TPSRH2D11 TPSRH3D28 TPSRH8D28
TPSRH2D14 TPSRH4D18 TPSRH8D38
TPSRH2D16 TPSRH4D28 TPSRH8D43
TPSRH2D18 TPSRH5D18 TPSRH8D58
TPSRH3D14 TPSRH5D28 TPSRH3D18
TPSRH3D16 TPSRH6D28 TPSRH6D38

Inductance
1R2 1.20µH
100 10.00µH
470 47.00µH
102 100.00µH
Tolerance
K ±10%
L ±15%
M ±20%
P ±25%
N ±30%
