Kelvin Current Sense Resistor
(LPS)Product Introduction (LPS)
Token's low value 4 lead kelvin current sensing (LPS) resistors family
offers a variety of possibilities for current shunts.
The (LPS) family for shunt is expected to gain wide acceptance in the worldwide market as a result of offering a variety of possibilities.
The U-shaped semi-customized LPS family for direct board mounting is specified for precision current sensing, feedback, current detective, supper low inductance, as well as surge and pulse applications. LPS family Available in very low ohm (0.002Ω ~ 0.05Ω) and high power (1W ~ 5W).
The dimensions of the semi-customized final unit is designed in accordance with the applicational requirements of resistance value and required power rating. Token's LPS series can be manufactured with 2 or 4 soldertags (terminals). The LPS type B with 2 soldertags (1 pin on each side) is a standard part of LPS series and type A with 4 terminals (2 pin on each side) is used either for Kelvin connections or for high current applications. Depending from the alloy material's thickness, one terminal contact on each side can carry up to 50A (A (Current) = (W (Power)/Ω (Resistance))1/2), so a 4-terminal part can carry 100A (ask Token factory).
Operating temperature range is -50°C to 300°C with tolerances ±2%, ±5%, and ±10%.
Token will also produce low value current sense resistor LPS series outside these specifications to meet customer requirements.
Contact us with your specific needs. Download PDF Specification Kelvin Current Sense Low Value Resistors (LPS).
Features :
- Radial leads.
- Non-inductance.
- Solderable Copper Leads.
- Lead (Pb)-free and RoHS compliant.
- ±2%, ±5%, ±10% standard tolerance.
- High stability bare metal element open air resistor.
Applications :
- Automotive, Feedback System.
- Residual Battery Power Detection.
- CPU Drive Control, Power Tool Motor controls.
- Power Supply Shunt, Current Detective, and Current Sensing.
- Inverter and Switching Power Supplies
- High power AC/DC detection.

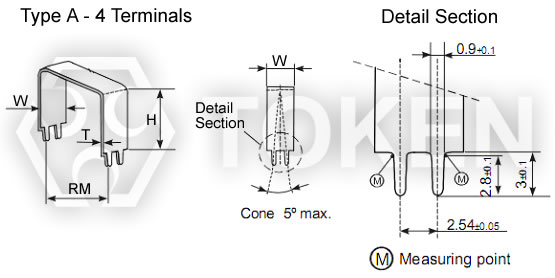

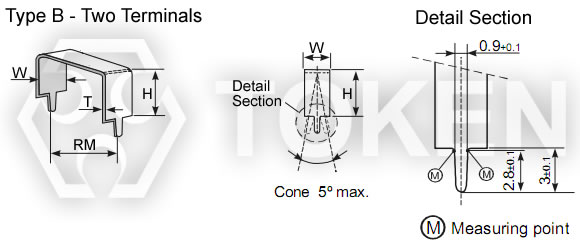

Dimensions (Unit: mm) Open Air 4-T & 2-T (LPS)
|
|||||
|
|||||
Type | Power (Watts) | Resistance Range (Ω) | RM (mm) | H (mm) Max. | |
LPS359-008 | 1 | R005~R05 | 5 ~ 30 | 20.0 | |
LPS359-009 | 2 | R005~R02 | |||
LPS359-010 | 3 | R003~R01 | |||
LPS359-011 | 5 | R002~R005 |
Construction: |
1. W, T and H depend on material, resistance value and required power rating. |
Characteristic Specification (LPS)
Test Items | Specification |
Resistance range | R002~R05 |
Tolerances | ±2%, ±5%, ±10% |
Temperature coefficient | Upon request |
Insulation voltage | Non insulated |
Insulation resistance | Non insulated |
Derating, linear | 70~300°C(0W) |
Climatic category | 55/155/21 |
Temperature range | -50~300°C |
Endurance (P70, 70°C, 1000 Hrs.) | ΔR≤±2%R |
Damp heat, steady state (40°C, 93% r.h., 56d) | ΔR≤±2%R |
Climatic sequence | ΔR≤±0.5%R |
Terminal strength | None |
Terminal tensile strength | None |
Resistance to soldering heat (350°C, 3.5s) | ΔR≤±0.5%R typ. |
Solderability (Solder bath method 235±5°C, 2±0.5s) | Good tinning (≥ 90 % covered), no visible damage |
Order Codes (LPS)
LPS359-008 | B | 3 | R024 | J | P | |||||||||||||||||||||||||||||||||||||||||||
1 | 2 | 3 | 4 | 5 | 6 | |||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
