Precision High-Voltage High-Value Resistors
(HI82) Planar Radial-LeadIntroduction (HI82)
Up to 10TΩ, (HI82) sets a new standard for high value, ultra-stable precision high voltage resistors.
![Precision High-Voltage High Value Resistor (HI82) Radial-Lead](image/hi82.jpg)
Precision High-Voltage High Value Resistor (HI82) Radial-Lead
The high performance high-voltage applications require the use of high voltage resistors in applications with long-term stability and good temperature coefficient. Token Electronics has introduced ultra-stable high-precision HI82 high voltage resistors to meet these needs.
Token's unique precision full film and serpentine transfer pattern (serpentine patterns design), using a specifical high speed fine-line thick film dispensing system, developed a series of high voltage application resistor components with excellent performance.Especially in smaller sizes and higher resistance-value components.
Through the use of alloy ruthenium paste material, and 95% high aluminum planar ceramic chip, Token can control the manufacture of very precise precision and stabilize the performance parameters of important high-voltage operating temperature range. (HI82) thick film resistor combined with close tracking design, with low current noise, linear current voltage, low TCR, high temperature durability, wide resistance range, long-term stability, and low-cost advantages.
Token HI82 ultra-precision high-voltage resistors conform with RoHS and lead-free standards and provide more competitive prices and fast delivery service. For technical specifications and special applications, please contact your Token's sales representative.
Download complete specification Planar Precision High-Voltage High-Value Resistors (HI82) Radial-Lead PDF.
(HI82) Family Members:
- (HI82D) Precision High-Voltage High-Value Resistor series, resistance range from 1mΩ to 10TΩ, precision tolerance from 30% to 0.25%, rated power has 1w/1.2w/3w selectable.
- (HI82H) Conventional Precision High-Voltage High Resistance Resistor series, various precision tolerance 1%/2%/5%/10%/20%/30%/50% available, four kinds of rated power 0.5w/0.7/1w/2w selectable, resistance from 1MΩ to 1TΩ.
- (HI82T) High Power Voltage Resistor series, maximum operating voltage up to 35KV, 30W high rated power to 0.125W, resistance range from 1Ω to 500MΩ, tolerance range 0.5% to 5%.
Features :
- High voltage thick film precision technology resistor.
- Resistance up to 10TΩ. Low TCR, low VCR.
- Radial leads, variable lead spacing by bending.
- Climatic protection by silicone coating
Applications :
- Impulse voltage generators,
- Arc furnace damping, Energy research,
- Pulse modulators, Radar Pulse-forming networks,
- Capacitor crowbar circuits, High voltage snubber circuits,

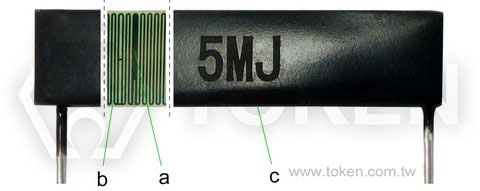

Composition Structure
|
Membrane Material (a) | Ruthenium Paste | |
Base Material (b) | 95% Aluminum Oxide, Al2O3 | ||
Encapsulating Material (c) | High Temperature Silicone Resin |

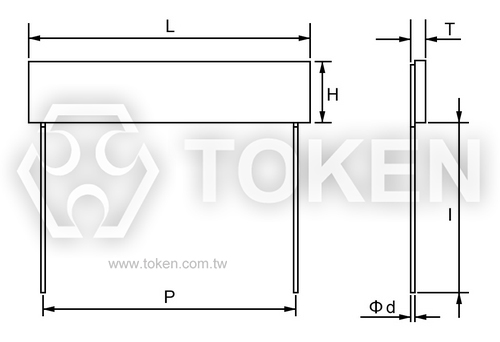

Ultra-precision high value voltage Resistor Dimensions (Unit: mm)
| ||||||||
HI82D Ultra-precision high-voltage high-value resistor | ||||||||
Part Number | L ±1mm | H ±1mm | T ±0.5mm | P ±2mm | I ±3mm | d ±0.1mm | ||
HI82D-1W | 30.0 | 6.0 | 1.4 | 27.5 | 20 | 0.4 | ||
HI82D-1BW | 40.0 | 6.0 | 1.4 | 37.8 | 20 | 0.4 | ||
HI82D-3W | 50.0 | 12.5 | 1.4 | 47.8 | 20 | 0.4 | ||
Note:
|
||||||||
HI82H Conventional precision high-voltage high-resistance resistor | ||||||
Part Number | L ±1mm | H ±1mm | T ±0.5mm | P ±2mm | I ±3mm | d ±0.1mm |
HI82H-05W | 3.2 | 2.5 | 0.9 | 2.0 | 20 | 0.4 |
HI82H-07W | 3.8 | 5.0 | 1.0 | 2.5 | 20 | 0.4 |
HI82H-1W | 6.3 | 3.5 | 1.0 | 5.5 | 20 | 0.4 |
HI82H-2W | 10.2 | 5.1 | 1.0 | 9.5 | 20 | 0.4 |
Note:
|
||||||
HI82T High-power voltage resistor | ||||||
Part Number | L ± 1mm | H ± 1mm | T ± 0.5mm | P ± 2mm | I ± 3mm | d ± 0.1mm |
HI82T-0125W | 8 | 3.5 | 2 | 5.7 | 10 | 0.6 |
HI82T-025W | 10 | 5 | 2 | 7.7 | 10 | 0.6 |
HI82T-04W | 25 | 5 | 2 | 22.5 | 20 | 0.6 |
HI82T-05W | 35 | 5 | 2 | 32 | 20 | 0.6 |
HI82T-1W | 30 | 8 | 2 | 27 | 20 | 0.6 |
HI82T-2SW | 25 | 10 | 2 | 22 | 20 | 0.6 |
HI82T-2NW | 22 | 18 | 2 | 19 | 20 | 0.6 |
HI82T-2BW | 45 | 10 | 3 | 41.5 | 20 | 0.8 |
HI82T-3W | 60 | 10 | 3 | 56.5 | 20 | 0.8 |
HI82T-5W | 80 | 20 | 4 | 76.5 | 40 | 1.0 |
HI82T-10W | 97 | 23 | 4 | 93.5 | 40 | 1.0 |
HI82T-20W | 100 | 35 | 4 | 96.5 | 40 | 1.0 |
HI82T-30W | 100 | 48 | 4 | 96.5 | 40 | 1.0 |
Note:
|
Technical Characteristics - (HI82D)
Part Number | Power Rating P70(W) | Working Voltage Max. (V) | Resistance Range (Ω) | Tolerance (%) | TCR(1) (ppm/°C) | VCR(2) (ppm/V) |
HI82D-1W | 1.0 | 10KV | 1M - 100M | 0.25/0.5/5/10 | 25/50/100 | 2ppm/V |
100M - 1G | 1/2/5/10/20 | 50/100/250 | 5ppm/V | |||
1G - 100G | 5/10/20/30 | 250/500 | 20ppm/V | |||
100G - 1T | 5/10/20/30 | 500/1000 | 100ppm/V | |||
HI82D-1BW | 1.2 | 20KV | 1M - 100M | 0.25/0.5/5/10 | 25/50/100 | 1ppm/V |
100M - 1G | 1/2/5/10/20 | 50/100/250 | 2ppm/V | |||
1G - 100G | 5/10/20/30 | 250/500 | 10ppm/V | |||
100G - 1T | 5/10/20/30 | 500/1000 | 50ppm/V | |||
HI82D-3W | 3.0 | 30KV | 1M - 100M | 0.25/0.5/5/10 | 25/50/100 | 1ppm/V |
100M - 1G | 1/2/5/10/20 | 25/50/100 | 1ppm/V | |||
1G - 100G | 5/10/20/30 | 100/250 | 5ppm/V | |||
100G - 1T | 5/10/20/30 | 250/500 | 25ppm/V | |||
1T - 10T | 10/20/30 | 500/1000 | 100ppm/V |
- (1) TCR 25/50: Temperature range +25°C ~ +85°C; (2) The voltage coefficient is measured between 10V and 100V.
- Operating Voltage = √ ( P * R ) , or Max. Operating Voltage listed in above table whichever is lower.
- Optional specifications on request.
Environmental Characteristic
Continuous operating voltage | V = √ ( P * R ) , or Max. Operating Voltage listed in above table whichever is lower. | |||
Measuring voltage | Standard measuring voltage is 10V (50V for values >1G). Different voltages on request. |
|||
TCR ppm/°C | Temperature range +25°C ~ +125°C | |||
TCR25/50 | ||||
Values above 1G: +25°C ~ +85°C. | ||||
Operating temp. range | -55°C ~ +125°C | |||
Climatic category to EN 60068-1 | 55/125/56 | |||
Humidity-/contact protection | Lacquer coating. Resistant to most solvents. Isopropyl alcohol recommended for cleaning; Do not use acetone or methylene choloride. Avoid mechanical stress to coating. |
|||
Stability: Storage 125°C/1000Hrs | ≤10G | >10G | ||
<1% | <2% | |||
Stability at Max. voltage/1000Hrs | ≤10G | >10G | ||
<1% | <2% |
Technical Characteristics - (HI82H)
Part Number | Power Rating P70(W) | Working Voltage Max. (V) | Resistance Range (Ω) | Tolerance (%) | TCR(1) (ppm/°C) | VCR(2) (ppm/V) | |
trimmed | untrimmed | ||||||
HI82H-05W | 0.5 | 300 | 1000 | 1M - 100M | 1/2/5/10 | TC25/50/100 | <50ppm/V |
>100M - 500M | 2/5/10/20 | TC50/100/250 | <100ppm/V | ||||
>500M - 1G | 5/10/20 | TC100/250 | <100ppm/V | ||||
>1G - 10G | 5/10/20/30 | TC250/500 | <500ppm/V | ||||
>10G - 100G | 5/10/20/30 | TC500/1000 | <1000ppm/V | ||||
>100G - 1T | - | - | - | ||||
HI82H-07W | 0.7 | 300 | 500 | 1M - 100M | 2/5/10 | TC50/100 | <50ppm/V |
>100M - 500M | 5/10/20 | TC100/250 | <100ppm/V | ||||
>500M - 1G | 5/10/20 | TC100/250 | <100ppm/V | ||||
>1G - 10G | 10/20/30 | TC250/500 | <500ppm/V | ||||
>10G - 100G | 10/20/30 | TC500/1000 | <1000ppm/V | ||||
>100G - 1T | - | - | - | ||||
HI82H-1W | 1.0 | 1200 | 2500 | 1M - 100M | 1/.../10 | TC25/50/100 | <10ppm/V |
>100M - 500M | 1/2/5/10/20 | TC25/50/100 | <25ppm/V | ||||
>500M - 1G | 1/2/5/10/20 | TC100/250 | <25ppm/V | ||||
>1G - 10G | 2/5/10/20 | TC100/250 | <100ppm/V | ||||
>10G - 100G | 5/10/20/30 | TC250/500 | <250ppm/V | ||||
>100G - 1T | 10/20/30/50 | TC500/1000 | <500ppm/V | ||||
HI82H-2W | 2.0 | 4000 | 6000 | 1M - 100M | 1/.../10 | TC25/50/100 | <5ppm/V |
>100M - 500M | 1/2/5/10/20 | TC25/50/100 | <10ppm/V | ||||
>500M - 1G | 1/2/5/10/20 | TC25/50/100 | <10ppm/V | ||||
>1G - 10G | 2/5/10/20 | TC50/100 | <25ppm/V | ||||
>10G - 100G | 5/10/20/30 | TC100/250 | <100ppm/V | ||||
>100G - 1T | 5/10/20/30 | TC250/500 | <250ppm/V |
- (1) TCR 25/50: Temperature range +25°C ~ +85°C; (2) The voltage coefficient is measured between 10V and 100V.
- Operating Voltage = √ ( P * R ) , or Max. Operating Voltage listed in above table whichever is lower.
- Optional specifications on request.
Environmental Characteristic
Continuous Operating Voltage | V = √ ( P * R ) , or Max. Operating Voltage listed in above table whichever is lower. | |||||
Measuring Voltage | Standard measuring voltage is 10V (50V for values >1G). Different voltages on request. |
|||||
TCR ppm/°C | Temperature range +25°C ~ +125°C | |||||
TCR25/50 | ||||||
Values above 1G: +25°C ~ +85°C. | ||||||
Operating Temperature Range | -55°C ~ +125°C | |||||
Climatic Category to EN 60068-1 | 55/125/56 | |||||
Humidity-/Contact Protection | Lacquer coating. Resistant to most solvents. Isopropyl alcohol recommended for cleaning; Do not use acetone or methylene choloride. Avoid mechanical stress to coating. |
|||||
Stability: Storage 125°C/1000Hrs. | ≤1G | ≤10G | >10G | |||
<1% | <2% | <5% | ||||
Stability at Max. voltage/1000Hrs. | ≤1G | ≤10G | >10G | |||
<0.5% | <1% | <2% |
Technical Characteristics - (HI82T)
Part Number | Power Rating P75(W) | Working Voltage Max. (V) | Resistance Range (Ω) | Tolerance (%) | TCR |
HI82T-0125W | 1/8W | 2KV | 1 ~ 500M | ±0.5% ~ ±5% | ±100ppm/°C |
HI82T-025W | 1/4W | 4KV | 1 ~ 500M | ||
HI82T-04W | 2/5W | 10KV | 1 ~ 500M | ||
HI82T-05W | 1/2W | 15KV | 1 ~ 500M | ||
HI82T-1W | 1W | 15KV | 1 ~ 500M | ||
HI82T-2SW | 2W | 20KV | 1 ~ 500M | ||
HI82T-2NW | 2W | 20KV | 1 ~ 500M | ||
HI82T-2BW | 2W | 20KV | 1 ~ 500M | ||
HI82T-3W | 3W | 25KV | 1 ~ 500M | ||
HI82T-5W | 5W | 30KV | 1 ~ 500M | ||
HI82T-10W | 10W | 35KV | 1 ~ 500M | ||
HI82T-20W | 20W | 35KV | 1 ~ 500M | ||
HI82T-30W | 30W | 35KV | 1 ~ 500M |
- TCR @25°C (25°C ~ +105°C). TCR ±15ppm/°C on request.
- Operating Voltage = √ ( P * R ) , or Max. Operating Voltage listed in above table whichever is lower.
- Optional specifications on request.
Environmental Characteristic
Continuous Operating Voltage | V = √ ( P * R ) , or Max. Operating Voltage listed in above table whichever is lower. | |||||
Measuring Voltage | Standard measuring voltage is 10V (50V for values >1G). Different voltages on request. |
|||||
TCR ppm/°C | Temperature range +25°C~+105°C | |||||
TCR 25/50 | ||||||
Values above 1G: +25°C~+105°C. | ||||||
Operating Temperature Range | -55°C ~ +225°C | |||||
Climatic Category to EN 60068-1 | 55/125/56 | |||||
Insulation withstand voltage | 1000VDC | |||||
Insulation resistance | ≥ 10GΩ | |||||
Humidity-/Contact Protection | Lacquer coating. Resistant to most solvents. Isopropyl alcohol recommended for cleaning; Do not use acetone or methylene choloride. Avoid mechanical stress to coating. |
|||||
Stability: Storage 125°C/1000Hrs. | ≤1G | ≤10G | >10G | |||
<1% | <2% | <5% | ||||
Stability at Max. voltage/1000Hrs. | ≤1G | ≤10G | >10G | |||
<0.5% | <1% | <2% |

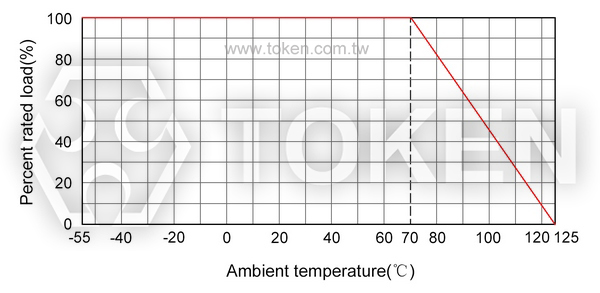

Power Derating Curve - (HI82D & HI82H)
![]() |
Power Derating Curve - (HI82T)
![]() |
Advance Technique of Non-Inductive & Serpentine Pattern (HI82)
![High Voltage Resistors (HI82) Serpentine Pattern](image/high-voltage-resistors-serpentine-pattern-3.jpg)
Non-Inductive Performance:
- HI82 Non-Inductive Design which uses a serpentine resistive pattern that offers for zigzagging lines to carry current in opposite directions,
thereby achieving maximum neutralization of flux fields over the entire length of the resistor.
- This efficient non-inductive construction without derating of any performance advantages is ideal for applications where high frequency is required.
Serpentine Pattern Screen Printing Design:
- Type High Voltage HI82 Precision Resistors combine Token's Non-Inductive serpentine pattern, high thru-put screen printed silicone coating.
- The alignment of the gap in the serpentine resistor pattern with the gap in the coating pattern provides a complete encapsulation of the resistor element.
- The cap and lead assemblies are pressed onto the resistor core, finishing the resistor and providing rugged terminal attachment.
Order Codes (HI82D) - Ultra-Precision High-Voltage High Value Resistors
HI82D | 1W | 1G | F | E | ||||||||||||||||||||||||||||||||||||||||||||||||||
1 | 2 | 3 | 4 | 5 | ||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
Order Codes (HI82H) - Conventional Precision High-Voltage High-Resistance Resistors
HI82H | 2W | 1G | F | E | ||||||||||||||||||||||||||||||||||||||||||||||||||||
1 | 2 | 3 | 4 | 5 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
Order Codes (HI82T) - High-Power Voltage Resistors
HI82T | 30W | 500M | F | E | ||||||||||||||||||||||||||||||||||||||
1 | 2 | 3 | 4 | 5 | ||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
Note: If no requirements for TCR, (HI82D), (HI82H) and (HI82T) measuring voltage and taping are given, the standard value(highest value in table) will be supplied, measuring voltage of 10V.
