Precision Chip Resistors
(AR)Introduction (AR)
Token's thin-film precision chip resistors (AR) take accuracy pole position and add powerful new options.
In response to market demands for increased precision and stability, Token Passive Components has expanded its AR Series of nichrome thin-film chip resistors into three sectors, Standard, High-Precision, and High-Power resistor.
Offering a wide value range with closer tolerances and low TCR figures, Token offers a surface mount resistor with a defined total contour that provides high stability under temperature fluctuations of 2ppm/°C and with a tolerance down to ± 0.01%.
The AR Series offering solutions to precision test and measurement and voltage regulation across industrial, military and medical monitoring equipment markets proposing superior tight tolerance, low TCR, and high power rating performance.
The range now also offers additional chip sizes. Key features of the enhanced AR Series include the availability of all standard sizes from AR01(0201), AR02(0402), AR03(0603), AR05(0805), AR06(1206), AR13(1210), AR10(2010), to AR12(2512).
The AR benefits from an impervious internal passivation layer applied in addition to the normal protective coating. When constructing the AR Chip Series, a Ni/Cr thin-film material is selectively deposited on an alumina substrate, together with Ni and Sn metallic contacts at each end layer plating. The AR chips are heat treated to give the required temperature coefficient (TCR) and stability, and then a precisely controlled laser trim process adjusts the resistance value.
The AR Series is available in taping packaging and is RoHS compliant and lead free.
For non-standard technical requirements and special applications, please contact us with your specific needs.
Download Complete PDF Specification (442KB) Thin-Film Precision Chip Resistors.
Features :
- Miniature Size 0201 available
- Thin Film Passivated NiCr Chips
- Very Tight Tolerance Down to ±0.01%
- Wide Resistance Value Range 1 Ω - 3Mega Ω
- Extremely Low TCR Down to ±2PPM/°C
- Products with Pb-free Terminations Meet RoHS Requirments
Applications :
- Converters
- Medical Equipment
- Automatic Equipment Controller
- Testing / Measurement Equipment
- Printer Equipment, Consumer Product
- Communication Device, Cell phone, GPS, PDA
Dimensions (Unit: mm) (AR)
|
|||||||
Codes | L (Unit: mm) | W (Unit: mm) | T (Unit: mm) | D1 (Unit: mm) | D2 (Unit: mm) | Weight (g) (1000pcs) | |
AR01 (0201) | 0.58±0.05 | 0.29±0.05 | 0.23±0.05 | 0.12±0.05 | 0.15±0.05 | 0.14 | |
AR02 (0402) | 1.00±0.05 | 0.50±0.05 | 0.30±0.05 | 0.20±0.10 | 0.20±0.10 | 0.54 | |
AR03 (0603) | 1.55±0.10 | 0.80±0.10 | 0.45±0.10 | 0.30±0.20 | 0.30±0.20 | 1.83 | |
AR05 (0805) | 2.00±0.15 | 1.25±0.15 | 0.55±0.10 | 0.30±0.20 | 0.40±0.25 | 4.71 | |
AR06 (1206) | 3.05±0.15 | 1.55±0.15 | 0.55±0.10 | 0.42±0.20 | 0.35±0.25 | 9.02 | |
AR13 (1210) | 3.10±0.15 | 2.40±0.15 | 0.55±0.10 | 0.40±0.20 | 0.55±0.25 | 10 | |
AR10 (2010) | 4.90±0.15 | 2.40±0.15 | 0.55±0.10 | 0.60±0.30 | 0.50±0.25 | 23.61 | |
AR12 (2512) | 6.30±0.15 | 3.10±0.15 | 0.55±0.10 | 0.60±0.30 | 0.50±0.25 | 38.06 |
Standard Electrical Specifications (AR)
Type | Power Rating at 70°C |
Operating Temp. Range | Max Operating Voltage | Max Overloading Voltage | Resistance Tolerance (%) |
Resistance Range (Ω) |
TCR PPM/°C |
AR01 (0201) |
1/32W | -55 ~ +155°C | 15V | 30V | ±0.5% ±1% |
49.9Ω~4.99KΩ | ±25 |
49.9Ω~33KΩ | ±50 | ||||||
AR02 (0402) |
1/16W | -55 ~ +155°C | 25V | 50V | ±0.05% | 49.9Ω~12KΩ | ±25, ±50 |
±0.1% | 10Ω~255KΩ | ||||||
±0.25%, ±0.5%, ±1% | 4.7Ω~511KΩ | ||||||
AR03 (0603) |
1/16W | -55 ~ +155°C | 50V | 100V | ±0.05% | 4.7Ω~332KΩ | ±25, ±50 |
±0.1% | 4.7Ω~1MΩ | ||||||
±0.25%, ±0.5%, ±1% | 1Ω~1MΩ | ||||||
AR05 (0805) |
1/10W | -55 ~ +155°C | 100V | 200V | ±0.05% | 4.7Ω~1MΩ | ±25, ±50 |
±0.1% | 4.7Ω~2MΩ | ||||||
±0.25%, ±0.5%, ±1% | 1Ω~2MΩ | ||||||
AR06 (1206) |
1/8W | -55 ~ +155°C | 150V | 300V | ±0.05% | 4.7Ω~1MΩ | ±25, ±50 |
±0.1% | 4.7Ω~2.49MΩ | ||||||
±0.25%, ±0.5%, ±1% | 1Ω~2.49MΩ | ||||||
AR13 (1210) |
1/4W | -55 ~ +155°C | 150V | 300V | ±0.05% | 4.7Ω~1MΩ | ±25, ±50 |
±0.1% | 4.7Ω~2.49MΩ | ||||||
±0.25%, ±0.5%, ±1% | 1Ω~2.49MΩ | ||||||
AR10 (2010) |
1/4W | -55 ~ +155°C | 150V | 300V | ±0.05% | 4.7Ω~1MΩ | ±25, ±50 |
±0.1% | 4.7Ω~3MΩ | ||||||
±0.25%, ±0.5%, ±1% | 1Ω~3MΩ | ||||||
AR12 (2512) |
1/2W | -55 ~ +155°C | 150V | 300V | ±0.05% | 4.7Ω~1MΩ | ±25, ±50 |
±0.1% | 4.7Ω~3MΩ | ||||||
±0.25%, ±0.5%, ±1% | 1Ω~3MΩ |
|
High-Precision Electrical Specifications (AR)
Type | Power Rating at 70°C |
Operating Temp. Range | Max Operating Voltage | Max Overloading Voltage | Resistance Tolerance (%) |
Resistance Range (Ω) |
TCR PPM/°C |
AR02 (0402) |
1/16W | -55 ~ +155°C | 25V | 50V | ±0.01%, ±0.05%, ±0.1% | 49.9Ω~4.99KΩ | ±2, ±3 |
±0.01%, ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1% | 49.9Ω~4.99KΩ | ±5 | |||||
±0.01%, ±0.05% | 49.9Ω~12KΩ | ±10, ±15 | |||||
±0.1%, ±0.25%, ±0.5%, ±1% | 49.9Ω~60KΩ | ±10 | |||||
±0.1%, ±0.25%, ±0.5%, ±1% | 49.9Ω~69.8KΩ | ±15 | |||||
AR03 (0603) |
1/16W | -55 ~ +155°C | 50V | 100V | ±0.01%, ±0.05%, ±0.1% | 24.9Ω~15KΩ | ±2, ±3 |
±0.01%, ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1% | 24.9Ω~15KΩ | ±5 | |||||
±0.01% | 24.9Ω~100KΩ | ±10, ±15 | |||||
±0.05% | 4.7Ω~332KΩ | ±10, ±15 | |||||
±0.1%, ±0.25%, ±0.5%, ±1% | 4.7Ω~511KΩ | ±10, ±15 | |||||
AR05 (0805) |
1/10W | -55 ~ +155°C | 100V | 200V | ±0.01%, ±0.05%, ±0.1% | 24.9Ω~30KΩ | ±2, ±3 |
±0.01%, ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1% | 24.9Ω~30KΩ | ±5 | |||||
±0.01 | 24.9Ω~200KΩ | ±10, ±15 | |||||
±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1% | 4.7Ω~1MΩ | ±10, ±15 | |||||
AR06 (1206) |
1/8W | -55 ~ +155°C | 150V | 300V | ±0.01%, ±0.05%, ±0.1% | 24.9Ω~49.9KΩ | ±2, ±3 |
±0.01%, ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1% | 24.9Ω~49.9KΩ | ±5 | |||||
±0.01% | 24.9Ω~499KΩ | ±10, ±15 | |||||
±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1% | 4.7Ω~1MKΩ | ±10, ±15 | |||||
AR13 (1210) |
1/4W | -55 ~ +155°C | 150V | 300V | ±0.01%, ±0.05%, ±0.1% | 24.9Ω~49.9KΩ | ±2, ±3 |
±0.01%, ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1% | 24.9Ω~49.9KΩ | ±5 | |||||
±0.01% | 24.9Ω~499KΩ | ±10, ±15 | |||||
±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1% | 4.7Ω~1MΩ | ±10, ±15 | |||||
AR10 (2010) |
1/4W | -55 ~ +155°C | 150V | 300V | ±0.01%, ±0.05%, ±0.1% | 24.9Ω~100KΩ | ±2, ±3 |
±0.01%, ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1% | 24.9Ω~100KΩ | ±5 | |||||
±0.01% | 24.9Ω~499KΩ | ±10, ±15 | |||||
±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1% | 4.7Ω~1MΩ | ±10, ±15 | |||||
AR12 (2512) |
1/2W | -55 ~ +155°C | 150V | 300V | ±0.01%, ±0.05%, ±0.1% | 24.9Ω~100KΩ | ±2, ±3 |
±0.01%, ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1% | 24.9Ω~100KΩ | ±5 | |||||
±0.01% | 24.9Ω~499KΩ | ±10, ±15 | |||||
±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1% | 4.7Ω~1MΩ | ±10, ±15 |
|
High-Power Rating Electrical Specifications (AR)
Type | Power Rating at 70°C |
Operating Temp. Range | Max Operating Voltage | Max Overloading Voltage | Resistance Tolerance (%) |
Resistance Range (Ω) |
TCR PPM/°C |
AR03 (0603) |
1/10W | -55 ~ +155°C | 75V | 150V | ±0.01%, ±0.05%, ±0.1% | 24.9Ω~15KΩ | ±2, ±3 |
±0.01%, ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1% | 24.9Ω~15KΩ | ±5 | |||||
±0.01% | 24.9Ω~100KΩ | ±10, ±15, ±25, ±50 | |||||
±0.05% | 4.7Ω~332KΩ | ±10, ±15, ±25, ±50 | |||||
±0.1%, ±0.25%, ±0.5%, ±1% | 4.7Ω~332KΩ | ±10, ±15 | |||||
±0.1%, ±0.25%, ±0.5%, ±1% | 4.7Ω~1MΩ | ±25, ±50 | |||||
1/6W | -55 ~ +155°C | 100V | 150V | ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1% | 10Ω~332KΩ | ±25, ±50 | |
AR05 (0805) |
1/8W | -55 ~ +155°C | 150V | 300V | ±0.01%, ±0.05%, ±0.1% | 24.9Ω~30KΩ | ±2, ±3 |
±0.01%, ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1% | 24.9Ω~30KΩ | ±5 | |||||
±0.01% | 24.9Ω~200KΩ | ±10, ±15, ±25, ±50 | |||||
±0.05% | 4.7Ω~511KΩ | ±10, ±15, ±25, ±50 | |||||
±0.1%, ±0.25%, ±0.5%, ±1% | 4.7Ω~511KΩ | ±10 | |||||
±0.1%, ±0.25%, ±0.5%, ±1% | 4.7Ω~1MΩ | ±15 | |||||
±0.1% | 4.7Ω~1MΩ | ±25, ±50 | |||||
±0.25%, ±0.5%, ±1% | 1Ω~1MΩ | ±25, ±50 | |||||
1/4W | -55 ~ +155°C | 150V | 300V | ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1% | 10Ω~499KΩ | ±25, ±50 | |
AR06 (1206) |
1/4W | -55 ~ +155°C | 200V | 400V | ±0.01%, ±0.05%, ±0.1% | 24.9Ω~49.9KΩ | ±2, ±3 |
±0.01%, ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1% | 24.9Ω~49.9KΩ | ±5 | |||||
±0.01% | 24.9Ω~499KΩ | ±10, ±15, ±25, ±50 | |||||
±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1% | 4.7Ω~1MΩ | ±10, ±15, ±25, ±50 | |||||
1/3W | -55 ~ +155°C | 200V | 400V | ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1% | 10Ω~1MΩ | ±25, ±50 | |
AR13 (1210) |
1/3W | -55 ~ +155°C | 200V | 400V | ±0.01%, ±0.05%, ±0.1% | 24.9Ω~49.9KΩ | ±2, ±3 |
±0.01%, ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1% | 24.9Ω~49.9KΩ | ±5 | |||||
±0.01% | 24.9Ω~499KΩ | ±10, ±15, ±25, ±50 | |||||
±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1% | 4.7Ω~1MΩ | ±10, ±15, ±25, ±50 | |||||
AR10 (2010) |
1/3W | -55 ~ +155°C | 200V | 400V | ±0.01%, ±0.05%, ±0.1% | 24.9Ω~49.9KΩ | ±2, ±3 |
±0.01%, ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1% | 24.9Ω~49.9KΩ | ±5 | |||||
±0.01% | 24.9Ω~499KΩ | ±10, ±15, ±25, ±50 | |||||
±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1% | 4.7Ω~1MΩ | ±10, ±15, ±25, ±50 | |||||
AR12 (2512) |
3/4W | -55 ~ +155°C | 200V | 400V | ±0.01% | 24.9Ω~2KΩ | ±10, ±15, ±25, ±50 |
±0.05%, ±0.1% | 4.7Ω~2KΩ | ±10, ±15, ±25, ±50 | |||||
±0.25%, ±0.5%, ±1% | 1Ω~2KΩ | ±10, ±15, ±25, ±50 | |||||
1W | -55 ~ +155°C | 200V | 400V | ±0.1% | 4.7Ω~100Ω | ±25, ±50 | |
±0.25%, ±0.5%, ±1% | 1Ω~100Ω | ±25, ±50 |
|
Environmental Characteristics (AR)
|
||||
Item | Specification | Test Method | ||
Tol.≤0.05% | Tol.>0.05% | |||
Temperature Coefficient of Resistance | AS Spec | MIL-STD-202F Method 304 +25/-55/+25/+125/+25°C |
||
Short Time Overload | ΔR±0.05% | ΔR±0.5% | JIS-C-5202-5.5 RCWV*2.5 or Max Overloading Voltage whichever is lower for 5 seconds. |
|
ΔR±0.5% for high power rating | ||||
Dielectric Withstand Voltage | By type | MIL-STD-202F Method 301 Apply Max Overload Voltage for l minute |
||
Insulation Resistance | >1000M Ω | MIL-STD-202F Method 302 Apply 100VDC for 1minute |
||
Thermal Shock | ΔR±0.05% | ΔR±0.25% | MIL-STD-202F Method 107G -55°C~150°C, 100cycles |
|
Load Life (Endurance) |
ΔR±0.05% | ΔR±0.2% | MIL-STD-202F Method 108A RCWV, 70°C, 1.5 hours ON, 0.5 hours OFF, 1000 hours |
|
>7KΩ ΔR±0.5% | ||||
ΔR±0.5% for high power rating | ||||
humidity (Steady State ) (Damp Heat with Load) |
ΔR±0.05% | ΔR±0.3% | MIL-STD-202F Method 103B 40°C, 90~95%RH, RCWV 1.5 hours ON, 0.5 hours OFF, total 1000 hours |
|
ΔR±0.5% for high power rating | ||||
Resistance to dry heat | ΔR±0.05% | ΔR±0.2% | JIS-C-5202-7.2 96 hours @ +155°C without load |
|
Low Temperature Operation | ΔR±0.05% | ΔR±0.2% | JIS-C-5202-7.1 1hour, -65°C, followed by 45minutes of RCWV |
|
ΔR±0.5% for high power rating | ||||
Bending Strength | ΔR±0.05% | ΔR±0.2% | JIS-C-5202-6.1.4 Bending Amplitude 3mm for 10seconds |
|
Solderability | 95%min coverage | MIL-STD-202F Method 208H 245°C±5°C, 2±0.5(sec) |
||
Resistance to Soldering Heat | ΔR±0.05% | ΔR±0.2% | MIL-STD-202F Method 210E 260±5°C, 10±1 second |
|
Recommend Land Pattern (Unit: mm) (AR)
|
||||
Codes | A | B | C | |
AR12 | 4.90 | 1.60 | 3.10±0.2 | |
AR10 | 3.60 | 1.40 | 2.50±0.2 | |
AR13 | 2.00 | 1.15 | 2.50±0.2 | |
AR06 | 2.00 | 1.15 | 1.70±0.2 | |
AR05 | 1.00 | 1.00 | 1.35±0.2 | |
AR03 | 0.80 | 1.00 | 0.90±0.2 | |
AR02 | 0.50 | 0.50 | 0.60±0.2 | |
AR01 | 0.25 | 0.30 | 0.40±0.2 |

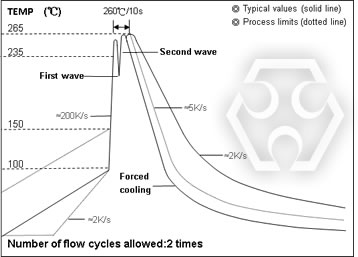

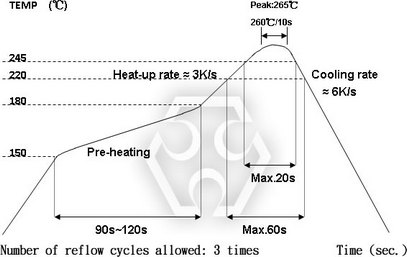

Recommend Soldering Condition (AR)
|
|
|
Packaging Quantity & Reel Specifications (Unit: mm) (AR)
|
||||||||
Codes | ΦA | ΦB | ΦC | W | T | Paper Tape(PCS) |
Emboss Plastic Tape (PCS) |
|
AR01 | 178.0±1.0 | 60.0±1.0 | 13.5±0.7 | 9.5±1.0 | 11.5±1.0 | 10,000 | - | |
AR02 | 178.0±1.0 | 60.0±1.0 | 13.5±0.7 | 9.5±1.0 | 11.5±1.0 | 10,000 | - | |
AR03 | 178.0±1.0 | 60.0±1.0 | 13.5±0.7 | 9.5±1.0 | 11.5±1.0 | 5,000 | - | |
AR05 | 178.0±1.0 | 60.0±1.0 | 13.5±0.7 | 9.5±1.0 | 11.5±1.0 | 5,000 | - | |
AR06 | 178.0±1.0 | 60.0±1.0 | 13.5±0.7 | 9.5±1.0 | 11.5±1.0 | 5,000 | - | |
AR13 | 178.0±1.0 | 60.0±1.0 | 13.5±0.7 | 9.5±1.0 | 11.5±1.0 | 5,000 | - | |
AR10 | 178.0±1.0 | 60.0±1.0 | 13.5±0.7 | 13.5±1.0 | 15.5±1.0 | - | 4,000 | |
AR12 | 178.0±1.0 | 60.0±1.0 | 13.5±0.7 | 13.5±1.0 | 15.5±1.0 | - | 4,000 |
Paper Tape Specifications (Unit: mm) (AR)
|
|||||||||||
Codes | A | B | W | E | F | P0 | P1 | P2 | ΦD0 | T | |
AR01 | 0.40±0.05 | 0.70±0.05 | 8.00±0.10 | 1.75±0.05 | 3.5±0.05 | 4.00±0.10 | 2.00±0.05 | 2.00±0.05 | 1.55±0.05 | 0.265±0.05 | |
AR02 | 0.70±0.05 | 1.16±0.05 | 8.00±0.10 | 1.75±0.05 | 3.5±0.05 | 4.00±0.10 | 2.00±0.05 | 2.00±0.05 | 1.55±0.05 | 0.40±0.03 | |
AR03 | 1.10±0.05 | 1.90±0.05 | 8.00±0.10 | 1.75±0.05 | 3.5±0.05 | 4.00±0.10 | 4.00±0.10 | 2.00±0.05 | 1.55±0.05 | 0.60±0.03 | |
AR05 | 1.60±0.05 | 2.37±0.05 | 8.00±0.10 | 1.75±0.05 | 3.5±0.05 | 4.00±0.10 | 4.00±0.10 | 2.00±0.05 | 1.55±0.05 | 0.75±0.05 | |
AR06 | 2.00±0.05 | 3.55±0.05 | 8.00±0.10 | 1.75±0.05 | 3.5±0.05 | 4.00±0.10 | 4.00±0.10 | 2.00±0.05 | 1.55±0.05 | 0.75±0.05 | |
AR13 | 2.75±0.05 | 3.40±0.05 | 8.00±0.10 | 1.75±0.05 | 3.5±0.05 | 4.00±0.10 | 4.00±0.10 | 2.00±0.05 | 1.60±0.10 | 0.75±0.05 |
Emboss Plastic Tape Specifications (Unit: mm) (AR)
|
|||||||||||
Codes | A | B | W | E | F | P0 | P1 | P2 | ΦD0 | T | |
AR10 | 2.85±0.10 | 5.45±0.10 | 12.0±0.10 | 1.75±0.10 | 5.5±0.05 | 4.00±0.05 | 4.00±0.10 | 2.00±0.05 | 1.50+0.10 | 1.00±0.20 | |
AR12 | 3.40±0.10 | 6.65±0.10 | 12.0±0.10 | 1.75±0.10 | 5.5±0.05 | 4.00±0.05 | 4.00±0.10 | 2.00±0.05 | 1.50+0.10 | 1.00±0.20 |
Tape Peel Force (AR)
|
|
|
Order Codes (AR)
AR | 05 | B | TR | C3 | X | 4700 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
0805~2512 4 digits marking for Example Marking
Resistance | 100Ω | 2.2KΩ | 10KΩ | 49.9KΩ | 100KΩ | 1MΩ |
Marking | 1000 | 2201 | 1002 | 4992 | 1003 | 1004 |
0603: 3 digits Marking E24 Nominal Table
E24 code | 10 | 11 | 12 | 13 | 15 | 16 | 18 | 20 | 22 | 24 | 27 | 30 | 33 | 36 | 39 | 43 | 47 | 51 | 56 | 62 | 68 | 75 | 82 | 91 |
|
Marking Table E96 Nominal Table
code | 02 | 03 | 04 | 06 | 07 | 08 | 09 | 10 | 11 | 13 | 14 | 15 | 16 | 17 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | 26 | 27 |
E96 | 102 | 103 | 107 | 113 | 115 | 118 | 121 | 124 | 127 | 133 | 137 | 140 | 143 | 147 | 154 | 158 | 162 | 165 | 169 | 174 | 178 | 182 | 187 |
code | 28 | 29 | 31 | 32 | 33 | 34 | 35 | 36 | 37 | 38 | 39 | 40 | 41 | 42 | 43 | 44 | 45 | 46 | 47 | 48 | 49 | 50 | 51 |
E96 | 191 | 196 | 205 | 210 | 215 | 221 | 226 | 232 | 237 | 243 | 249 | 255 | 261 | 267 | 274 | 280 | 287 | 294 | 301 | 309 | 316 | 324 | 332 |
code | 52 | 53 | 54 | 55 | 56 | 57 | 58 | 59 | 60 | 61 | 62 | 63 | 64 | 65 | 66 | 67 | 68 | 69 | 70 | 71 | 72 | 73 | 74 |
E96 | 340 | 348 | 357 | 365 | 374 | 383 | 392 | 402 | 412 | 422 | 432 | 442 | 453 | 464 | 475 | 487 | 499 | 511 | 523 | 536 | 549 | 562 | 576 |
code | 75 | 76 | 77 | 78 | 79 | 80 | 81 | 82 | 83 | 84 | 86 | 87 | 88 | 89 | 90 | 91 | 92 | 93 | 94 | 95 | 96 | ||
E96 | 590 | 604 | 619 | 634 | 649 | 665 | 681 | 698 | 715 | 732 | 768 | 787 | 806 | 825 | 845 | 866 | 887 | 909 | 931 | 953 | 976 |
Multiplier E96 Marking
Code | A | B | C | D | E | F | X | Y |
Multiplier | 100 | 101 | 102 | 103 | 104 | 105 | 10-1 | 10-2 |
More Information of Resistors in PDF Download
Low Resistance Resistors, Sufrace Mount Chip Resistor Series PDF download (1,356KB).
Sufrace Mount Terminology & Glossary PDF download (398KB).
Chip Resistor Application Notes PDF download (222KB).
General Information of Chip Resistor download (208KB).
Selecting The Optimum Resistors PDF download (234KB).
Common Resistor Terminology PDF download (315KB).
Resistor Precautions in Usage PDF download (301KB).
Typical RoHS Reflow Profile PDF download (303KB).
What is a Resistor PDF download (562KB).
