Aluminum Encased Precision Power Heat Sinkable Resistor
(AHL)Introduction (AHL)
Aluminum Housed Wirewound Power
Thumbnail Gallery(AHL) Precision Power Heat Sinkable Resistors Reach unreachable points and simplify your PCB design. Token Electronics extended lead wire aluminum housed wirewound Power resistor (AHL) provides design engineers a flexible connection in distance between connections
(AHL) is a high-performance axial-terminal type resistor with flexible connections. These molded-construction aluminum-chassis resistors are available in higher power ratings than standard axial-terminal resistors and are better suited to withstanding vibration, shock and harsh environmental conditions.
(AHL) resistors are aluminum encased to maintain high stability during operation and to permit secure mounting to chassis surfaces. The metal housing also provides heat sinkable capabilities, allowing the units to exceed the power ratings.
The (AHL) Series is RoHS compliant and lead free. For non-standard technical requirements and custom special applications, please contact us for details with your specific needs.
Downloads complete PDF version Aluminum Encased Precision Power Heat Sinkable Resistor (AHL).
Non-Inductive :
Ayrton Perry type non-inductive winding is available. When required add "N" to the part number.
Features :
- High stability, strong construction.
- Standard winding & non-inductive winding types.
- High power rating, small size and ultra precision.
- Aluminum housing allows chassis mounting
and provides heatsink capability.
General Specification :
- Resistance Tolerance: ±10%, ±5%.
- Operating Temperature Range: -55°C to +275°C.
- Wattage Range: 4 styles to choose ranging from 25 to 150 watts.
- Dielectric Strength: AHL-25 1000V, AHL-50 1500V, AHL-150 2500V.
Materials Extended Lead Wire (AHL)
① | Encapsulant | Silicone | |||
End caps | Stainless steel | ||||
Core | Ceramic steatite or aluminum | ||||
Housing | Aluminum with hard anodic coating | ||||
Element | Copper-nickel alloy, nickel-chrome alloy or manganese copper | ||||
② | Wire (14AWG) |
AHL-25, AHL-25N | AHL-50, AHL-50N | AHL-150, AHL-150N | AHL-150A, AHL-150AN |
Length=160mm | Length=340mm | Length=500mm | Length=300mm | ||
③ | Terminals | LVA2-250, Cu (Nickel-plate), W7.5 × L10mm |
Note: All values might be changed or modified, please consult factory for details.
Dimensions Extended Lead Wire (AHL-25, AHL-50)
|
|||||||||
Type | Dimensions (Unit: mm) | ||||||||
E | F | G | H | M | N | P | Q | ||
AHL-25 AHL-25N |
13 | 7 | 14.3 | 2 | 18.3 | 27 | 20 | 27 | |
AHL-50 AHL-50N |
15.5 | 7.3 | 16 | 2 | 40 | 50 | 22 | 29 |
Note: All values might be changed or modified, please consult factory for details.
Dimensions Extended Lead Wire (AHL-150, AHL-150A)
|
||||||||
Type | Dimensions (Unit: mm) | |||||||
E | F | G | H | N | P | Q | ||
AHL-150 AHL-150N |
45 | 9.6 | 46 | 5 | 92 | 57 | 72 | |
AHL-150A AHL-150AN |
26 | 11.5 | 27 | 3.5 | 97 | 37 | 48 |
Note: All values might be changed or modified, please consult factory for details.
Dimensions - LVA250 Terminals (AHL)
|
||||||||
Suitable for 14~16AWG | lmax=15A | Unit: mm | Tol.: ±0.2mm | |||||
ITEM | NEMA-TAB | Thickness | B (Ref.) | dΦ | DΦ | L | H | |
LVA 2-250 | 0.8 × 6.35 | 0.4 | 7.4 | 2.3 | 4.3 | 21.0 | 10.0 |
Note: All values might be changed or modified, please consult factory for details.
Electrical Specification Extended Lead Wire (AHL)
Type | Wattage Rating (W) | Resistance Range (Ω) | Max. Working (V) | Proper heat sink (Aluminum chassis) | ||
Inductive | Non-inductive | Inductive | Non-inductive | |||
AHL-25 | 25 | 0.012~15K | - | 500 | - | 1077 cm2 × 1.0 mm thick or equiv |
AHL-25N | 25 | - | 0.02~5.5K | - | 300 | 1077 cm2 × 1.0 mm thick or equiv |
AHL-50 | 50 | 0.01~40K | - | 1300 | - | 1877 cm2 × 1.5 mm thick or equiv |
AHL-50N | 50 | - | 0.02~12K | - | 600 | 1877 cm2 × 1.5 mm thick or equiv |
AHL-150 | 150 | 0.4~50K | - | 1900 | - | 1896 cm2 × 3.2 mm thick or equiv |
AHL-150N | 150 | - | 0.12~25K | - | 1340 | 1896 cm2 × 3.2 mm thick or equiv |
AHL-150A | 150 | 0.4~50K | - | 1900 | - | 1896 cm2 × 3.2 mm thick or equiv |
AHL-150AN | 150 | - | 0.12~25K | - | 1340 | 1896 cm2 × 3.2 mm thick or equiv |
Note: All values might be changed or modified, please consult factory for details.
Surface Temperature Versus Power Load (Mounted on heat sink chassis) Extended Lead Wire (AHL)
|

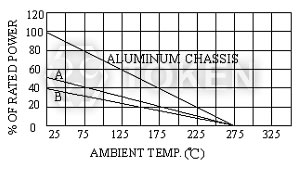

Ambient Temperature Derating (AHL)
|
Reduced Heat Sink Derating (AHL)
|
Test Conditions (AHL)
Parameters | Test Conditions | Specifications |
Vibration | 10c/s~50c/s~10c/s (1Min) - 2Hours each of paralleled and right angle |
Δ R±(1%+0.05Ω) Max. |
Load Life | Load Rating (chassis mounted) (1.5Hour on 0.5Hour OFF) Repeat 1000Hours |
Δ R±(5%+0.1Ω) Max. |
Heat Resistance | 260±5°C, 10±1Sec. | Δ R±(1%+0.05Ω) Max. |
Terminal Strength | Pull Test (30 sec Min) 4.5kg | Δ R±(0.2%+0.05Ω) Max. |
Dielectric Strength | AHL-25 1000V AHL-50 1500V AHL-100, AHL-150 2000V |
Δ R±(0.5%+0.05Ω) Max. |
Moisture Load Life | Temp 40°C moisture 95% 1/10 × wattage rating (1.5Hr on-0.5Hr OFF) - Repeat 200Hr |
Δ R±(1%+0.1Ω) Max. |
Moistrue Resistance | Temp 40°C moisture 95% DC 100V 500Hr | Δ R±(1%+0.1Ω) Max. |
Insulation Resistance | Under the same test condition of Dielectric Strength, Load DC500V and measure the Insulation R. |
10MΩ Min. |
Short Time Over Load | 5 × wattage rating-5sec. | Δ R±(2%+0.1Ω) Max. |
Order Codes Extended Lead Wire (AHL)
AHL-50 | 50W | L340 | 14AWG | 510R | K | |||||||||||||||||||||||||||||||||||||||
1 | 2 | 3 | 4 | 5 | 6 | |||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
