Tubular Round Edge-Wound Power Resistor
(DST)Introduction (DST)
Tubular edge-wound power resistor starter (DST) is suitable for
application loads involving brief current surges.
(DST) Starter Construction:
- A tubular ceramic insulator has a fixed number of windings and is wound with heavy alloy wire as a resistance element. The staggering wound is made according to the desired resistance value, followed by the placement of the component mounts.
- Metal parts are heavily plated to prevent oxidation at high operating temperatures and to prevent corrosion. DST's high power rating (500W~1000W) and low resistance value (0.5Ω-7Ω) provide applications high starter power and capacity.
- This power wirewound resistor is high temperature-resistant, dissipates heat well, has a low temperature coefficient that varies in direct proportion, and is suitable for application loads involving brief current surges.
Applications:
- Typical applications as motor starters, load measurements, industrial machinery resistor, electric distribution resistors, dynamic braking resistors, load dumping resistor, current limiting resistors, instrumentation, and automation control installations.
- Due to the set number of windings on the ceramic form, the resistance value range is relatively low. Tolerance is ±10% and this product is available in various shapes or in resistance boxes.
The (DST) Series is RoHS compliant and lead free. For non-standard technical requirements and special applications, please contact us.
Downloads Complete Specification in PDF High Current Tubular Round Edge-Wound Power Resistor.

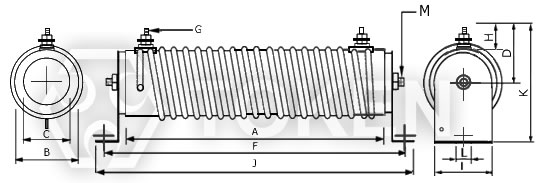

Power Starter Dimensions (DST)
|
||||||||||||||||
Wattage Rating | Dimensions (Unit: mm) | Resistance Range(Ω) | ||||||||||||||
A | B | C | D | E | F | G | H | I | J | K | L | Weight | ||||
500W | 280 | 40 | 23 | 45 | 15 | 326 | 6 | 22 | 34 | 346 | 85 | 8 | 970/g | 3.5Ω-7Ω | ||
600W | 300 | 44 | 26 | 50 | 15 | 342 | 8 | 32 | 34 | 362 | 90 | 8 | 1277/g | 0.5Ω-3Ω | ||
1000W | 420 | 48 | 30 | 56 | 15 | 470 | 8 | 32 | 40 | 490 | 105 | 9 | 1887/g | 0.8Ω-3Ω |
Notice: All dimensions might be changed or modified, please refer to last updating specification.
Order Codes (DST)
DST | 1000W | 0.5R | K | G | ||||||||||||||||||||
1 | 2 | 3 | 4 | 5 | ||||||||||||||||||||
|
|
|
|
|
