Ceramic Filters
450kHz~470kHz (LTB)Introduction (LTB)
(LTB) Ceramic Filter is Perfect for Shrinking Mobile Communication Products. Token Ceramic Filter series conform to the RoHS directive and Lead-free.
Ceramic filters for communication (LTB) series can be customed designs and tighter tolerances available on request.
Application of ceramic filters specific designs also available including different piezo band-pass devices and Q specifications adjusted to frequency requirements.
Token ceramic filters for communication (LTB) series comprises small, high performance.
Their innovative construction is perfect for shrinking mobile communication products such as pocket pagers and cellular phones.
Operating temperature range: -20°C to +80°C; Storage temperature range: -40°C to +85°C.
Dimensions (Unit: mm) (LTB)
|
Technical Characteristics (LTB)
|
|||||||
| PartNumber | Center Frequency (fo) (kHz) | 6dB Band Width (kHz) min | Selectivity ±9kHz off (dB) min | Pass Band Ripple (dB) max | Insertion Loss (dB) max | Input / Output Impedance (Ω) | |
| LTB450AL2 | 450±2 | 4 | 18 | 1.0 | 6.8 | 1.0/1.5 | |
| LTB455AL2 | 455±2 | ||||||
| LTB465AL2 | 465±2 | ||||||
| LTB450BL2 | 450±2 | 6 | 16 | 1.0 | 5.8 | 1.5/2.0 | |
| LTB455BL2 | 455±2 | ||||||
| LTB465BL2 | 465±2 | ||||||

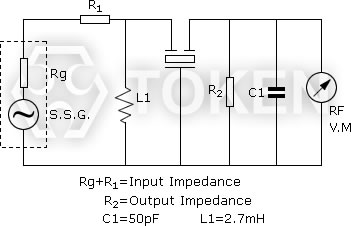

Test Circuit (LTB)
|
Order Codes (LTB)
| LTB450AL2 | P | ||
| 1 | 2 | ||
|
|
