SMD Ceramic Filters
(LTCA/CV10.7M)Introduction (LTCA/CV10.7M)
Surface Mount Low Profile 1.5±0.2 mm
Thumbnail GallerySMD Ceramic Filters with Low Profile 1.5±0.2 mm, Murata SFECV10M7 Compatible. Token surface mount ceramic (LTCA/CV10.7M) filter for AM/FM has been made smaller, thinner and in a chip configuration for surface mounting to be of help to the total chip circuit. This is one more example of Token's leadership in converting conventional electronic components to chip technology.
The LTCA/CV10.7M series for FM-receivers are monolithic type ceramic filters which utilize the thickness expander mode of the piezoelectric ceramic. Piezoelectric element is connected in the sandwich shape by heat resistant substrate, thus it has excellent mechanical strength, and it is suitable for automatic mounting.
The dimensions of LTCA/CV10.7M ceramic chip filter is small as 7.0±0.3 x 3.0±0.3 mm with low profile 1.5±0.2 mm. Insertion Loss max(dB) is from 3.0 db ~ 10 db, Spurious Attenuation (9~12 MHz) min(dB) 30 db ~ 35 db with Input/Output Impedance: 330Ω. Various bandwidths are available. Select a suitable type in accordance with the desired selectivity.
The LTCA/CV10.7M series conform to the RoHS directive. Token will also produce devices outside these specifications to meet specific customer requirements, please contact our sales for more information. Download datasheet SMD Ceramic Filters for AM/FM PDF (326KB).
Applications :
- Small, thin radios, automotive radios.
- Headphone stereos.

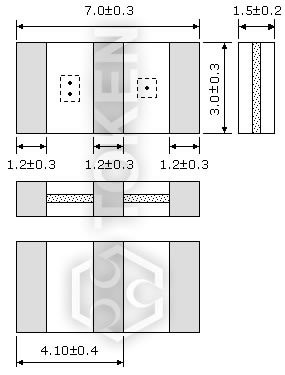

Dimensions (Unit: mm) (LTCA/CV10.7M)
|
Technical Characteristics (LTCA/CV10.7M)
Part Number | 3dB Band Width (kHz) | 20dB Band Width (kHz) max | Insertion Loss (dB)max | Spurious Attenuation (9-12MHz)(dB)min |
LTCA10.7MJ | 150±40 | 430 | 10.0 | 30 |
LTCV10.7MJ | 150±40 | 380 | 5.5±2.0 | 35 |
LTCA10.7MA5 | 280±50 | 650 | 6.0 | 30 |
LTCV10.7MA5 | 280±50 | 590 | 3.0±2.0 | 35 |
LTCA10.7MS2 | 230±50 | 570 | 6.0 | 30 |
LTCV10.7MS2 | 230±50 | 510 | 3.5±2.0 | 35 |
LTCA10.7MS3 | 180±40 | 520 | 6.0 | 30 |
LTCV10.7MS3 | 180±40 | 470 | 4.0±2.0 | 35 |
Input/Output Impedance: 330Ω
Order Codes (LTCA/CV10.7M)
LTCV10.7MA5 | TR | ||
1 | 2 | ||
|
|
