High-Selectivity Band-Pass Filters
4.5 MHz~6.74 MHz (LTT MA)Introduction (LTT MA)
Ceramic High-Selectivity Band-Pass Filter for TV/VCR Stage Compatible Murata SFT. Token high-selectivity filters for TV/VCR stage (LTT MA) series is 4 element devices that offer more selectivity than the conventional LT series (Murata SFE). The improved spurious suppression of these filters eliminates the need for cascading multiple filtering devices; therefore, it is possible to design a more compact circuit board configuration.
Token High-Selectivity (LTT MA) Band-Pass Filter conform to the RoHS directive. This high-selectivity device can be customed designs and tighter tolerances available on request.
Application of ceramic filter specific designs also available including different piezo band-pass devices and Q specifications adjusted to frequency requirements. Token ceramic filters can supply you high performance, high quality and stability.
With dimensions (15±2.0 x 7.5±2.0 x 3.0±1.0 mm), Insert Loss max 9db and 10dB, Spurious Attenuation min 40dB and 50 db, and Input/Output Impedance 470Ω, 600Ω, 1000Ω, Nominal Center Frequency (fo) (MHz) of LTT MA series is available 4.500MHz, 4.724MHz, 5.500MHz, 5.742MHz, 6.000MHz, 6.250MHz, 6.500MHz, and 6.742MHz.
Custom parts are available on request. Token will also produce devices outside these specifications to meet specific customer requirements, please contact our sales for more information. Download complete (LTT MA) High-Selectivity Band-Pass Filter Datasheet PDF (301KB).

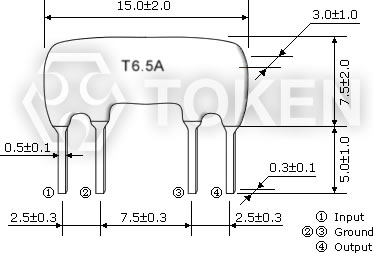

Dimensions (Unit: mm) (LTT MA)
|
Technical Characteristics (LTT MA)
|
|||||||
Part Number |
Nominal Center Frequency (fo) (MHz) |
3dB Band Width (kHz) min |
20dB Band Width (kHz) max |
Insert Loss (dB) max |
Spurious Attenuation (dB) min |
Input/Output Impedance (Ω) |
|

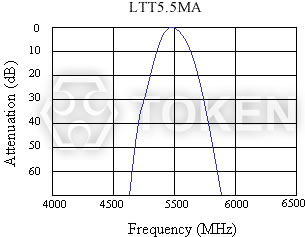

LTT4.5MA | 4.500 | fo±40 | 370 | 10.0 | 40(4.5![]() |
1000 | |
LTT4.72MA | 4.724 | fo±40 | 370 | 10.0 | 40(4.72![]() |
1000 | |
LTT5.5MA | 5.500 | fo±50 | 350 | 9.0 | 40(5.5±1MHz) | 600 | |
LTT5.74MA | 5.742 | fo±50 | 350 | 9.0 | 50(5.74±1MHz) | 600 | |
LTT6.0MA | 6.000 | fo±50 | 400 | 9.0 | 50(6.0±1MHz) | 470 | |
LTT6.25MA | 6.250 | fo±50 | 400 | 9.0 | 50(6.25±1MHz) | 470 | |
LTT6.5MA | 6.500 | fo±50 | 400 | 9.0 | 50(6.5±1MHz) | 470 | |
LTT6.74MA | 6.742 | fo±50 | 400 | 9.0 | 50(6.74±1MHz) | 470 |

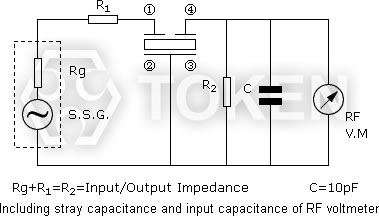

Test Circuit (LTT MA)
|
Order Codes (LTT MA)
LTT4.5MA | P | ||
1 | 2 | ||
|
|
